CLV1L Series

Catalog

LED RGB 4PLCC SMD

Part	Wavelength - Dominant Color	Wavelength - Dominant (Blue)	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Configuration	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Millicandela Rating (Blue)	Size / Dimension Width	Size / Dimension Length	Color	Current - Test Colors	Current - Test (Green)	Current - Test (Red)	Current - Test (Blue)	Mounting Type	Package / Case	Package Name	Height (Max)	Lens Style	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Lens Transparency	Lens Color
CreeLED, Inc. CLV1L-FKB-CHMMQDGBB7673673	Blue Green Red	469 nm	529 nm	622 nm	Common Anode	Blue Green Red	1255 mcd	628 mcd	248 mcd	2.8 mm	3.2 mm	Blue (RGB) Green Red	Blue Green Red	15 mA	20 mA	15 mA	Surface Mount	4-LCC (J-Lead)	4-PLCC	2.1 mm	Flat Top Round	3.2 V	Blue Green Red	3.2 V	2 V
CreeLED, Inc. CLV1L-FKB-CHMMQEHBB7673673	Blue Green Red	469 nm	529 nm	622 nm	Common Anode	Blue Green Red	1100 mcd	450 mcd	250 mcd	2.8 mm	3.2 mm	Blue (RGB) Green Red	Blue Green Red	15 mA	20 mA	15 mA	Surface Mount	4-LCC (J-Lead)	4-PLCC	2.1 mm	Flat Top Round	3.2 V	Blue Green Red	3.2 V	2 V	Diffused	White
CreeLED, Inc. CLV1L-FKB-CHMMQEHBB7673673	Blue Green Red	469 nm	529 nm	622 nm	Common Anode	Blue Green Red	1100 mcd	450 mcd	250 mcd	2.8 mm	3.2 mm	Blue (RGB) Green Red	Blue Green Red	15 mA	20 mA	15 mA	Surface Mount	4-LCC (J-Lead)	4-PLCC	2.1 mm	Flat Top Round	3.2 V	Blue Green Red	3.2 V	2 V	Diffused	White

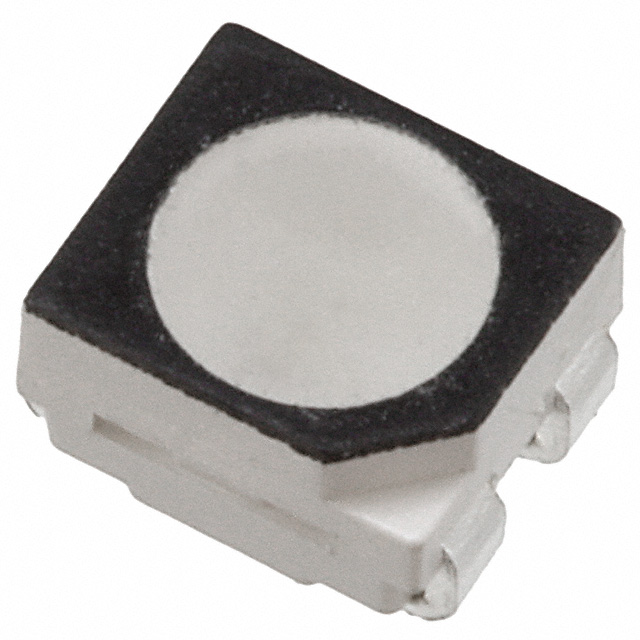

CreeLED, Inc. CLV1L-FKB-CJMNQEGBB7673673	Blue Green Red	468 nm	528 nm	622 nm	Common Anode	Blue Green Red	1350 mcd	675 mcd	268 mcd	2.8 mm	3.2 mm	Blue (RGB) Green Red	Blue Green Red	15 mA	20 mA	15 mA	Surface Mount	4-PLCC	4-PLCC	2.1 mm	Flat Top Round	3.1 V	Blue Green Red	3.1 V	2 V
CreeLED, Inc. CLV1L-FKB-CJMNQEGBB7673673	Blue Green Red	468 nm	528 nm	622 nm	Common Anode	Blue Green Red	1350 mcd	675 mcd	268 mcd	2.8 mm	3.2 mm	Blue (RGB) Green Red	Blue Green Red	15 mA	20 mA	15 mA	Surface Mount	4-PLCC	4-PLCC	2.1 mm	Flat Top Round	3.1 V	Blue Green Red	3.1 V	2 V
