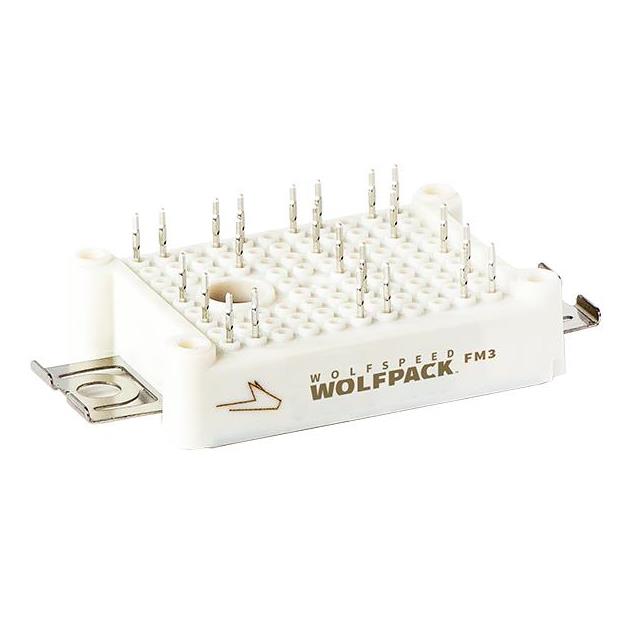

CCB021 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
SIC 6N-CH 1200V 51A MODULE
| Part | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Technology | Vgs(th) (Max) | Input Capacitance (Ciss) (Max) | Gate Charge (Max) | Rds On (Max) | Mounting Type | Channel Count | Configuration | Configuration - Features | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Wolfspeed, Inc. | Module | -40 °C | 150 °C | Silicon Carbide (SiC) | 3.6 V | 4900 pF | 162 nC | 27.9 mOhm | Chassis Mount | 6 | N-Channel | 3-Phase Bridge | 1200 V | 51 A |
