843004I Series

FemtoClock LVCMOS/Crystal-to-3.3V,2.5V LVPECL Frequency Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock LVCMOS/Crystal-to-3.3V,2.5V LVPECL Frequency Synthesizer

Part	Mounting Type	Type	Input	Output	Multiplier	Divider	Differential Output	Differential Input	Number of Circuits	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length	Frequency - Max	PLL	Input Ratio	Output Ratio
Renesas Electronics Corporation 843004AGILF	Surface Mount	Frequency Synthesizer	Crystal	LVPECL	No	Yes	Yes	No	1	2.375 V	3.465 V	-40 °C	85 °C	4.4 mm	24-TSSOP	0.173 in	226.66 MHz	Yes with Bypass	1	4

Catalog

FemtoClock LVCMOS/Crystal-to-3.3V,2.5V LVPECL Frequency Synthesizer

Description

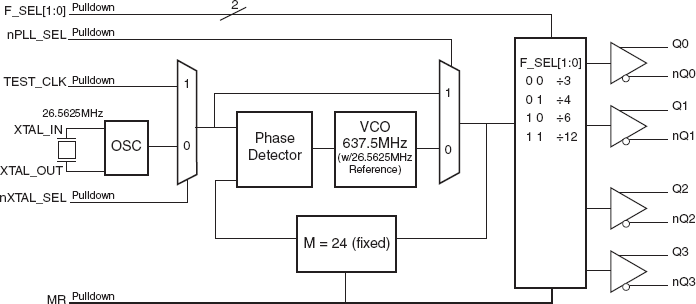

The 843004I is a 4 output LVPECL synthesizer optimized to generate Fibre Channel reference clock frequencies. Using a 26.5625MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the two frequency select pins (F_SEL[1:0]): 212.5MHz, 187.5MHz, 159.375MHz, 156.25MHz, 106.25MHz, and 53.125MHz. The 843004I uses our 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter, easily meeting Fibre Channel jitter requirements. The 843004I is packaged in a small 24-pin TSSOP package.
