RTS716 Series

Catalog

CONN RCPT HSG FMALE 4POS PNL MNT

Part	Contact Size	Material Flammability Rating	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Contact Type	Number of Positions	Fastening Type	Housing Color	Shell Material	Mounting Feature	Shielding	Connector Type	Orientation	Type	Shell Size - Insert Length	Shell Size - Insert Width	Insert Material	Contact Shape	Note	Operating Temperature (Max)	Operating Temperature (Min)	Includes Total Count	Includes	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features
McGill Microwave Systems RTS716N4S03	8	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	4	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Female Sockets	16 mm	4 mm	Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring
McGill Microwave Systems RTS716N19S03	16 S	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	19	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Female Sockets			Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring	19	16 S

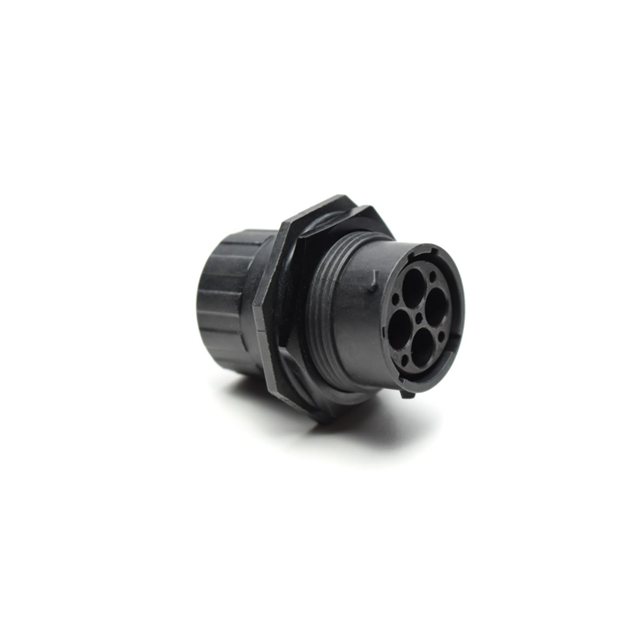

McGill Microwave Systems RTS716N4PHEC03	8	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	4	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Male Pins	16 mm	4 mm	Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	6 pcs	Backshell Connector Gasket O-Ring Ring Seal			Backshell
McGill Microwave Systems RTS716N26P03	20	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	26	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Male Pins			Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring	26	16 S

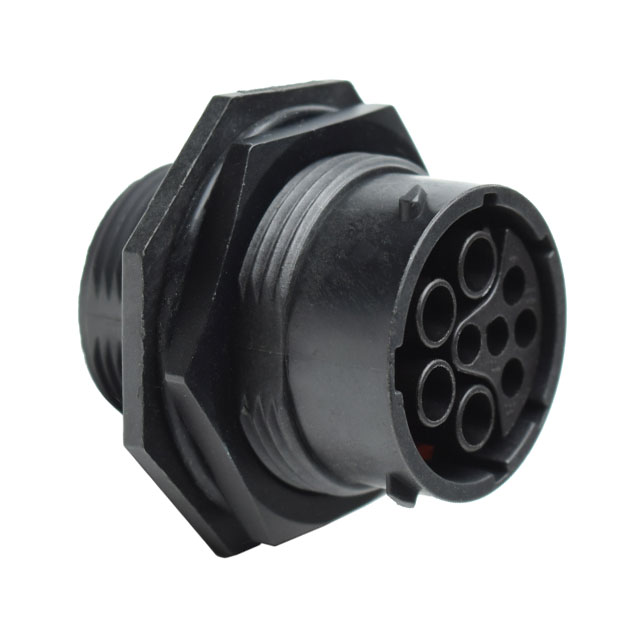

McGill Microwave Systems RTS716N09S03	2.5 mm 16	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	9	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Female Sockets	16 mm	9 mm	Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring
McGill Microwave Systems RTS716N4P03	8	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	4	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Male Pins	16 mm	4 mm	Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring

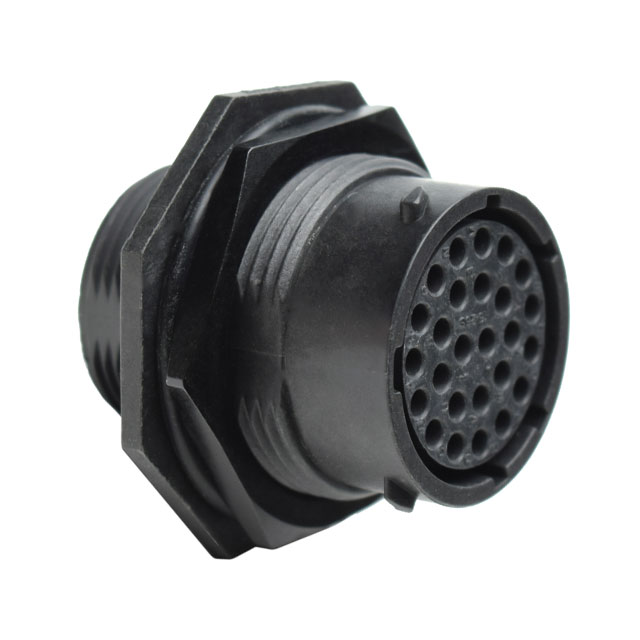

McGill Microwave Systems RTS716N26S03	20	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	26	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Female Sockets			Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	4 pcs	Connector Gasket Nut O-Ring	26	16 S

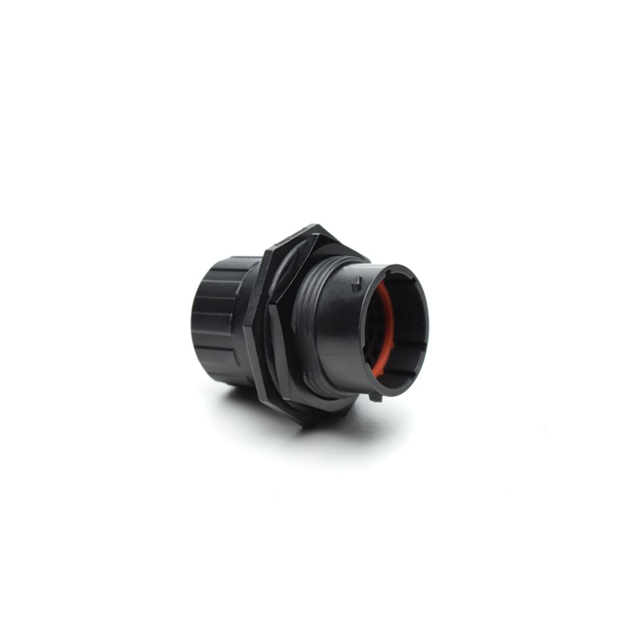

McGill Microwave Systems RTS716N26PHEC03	20	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	26	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Male Pins			Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	26	16 S	Backshell

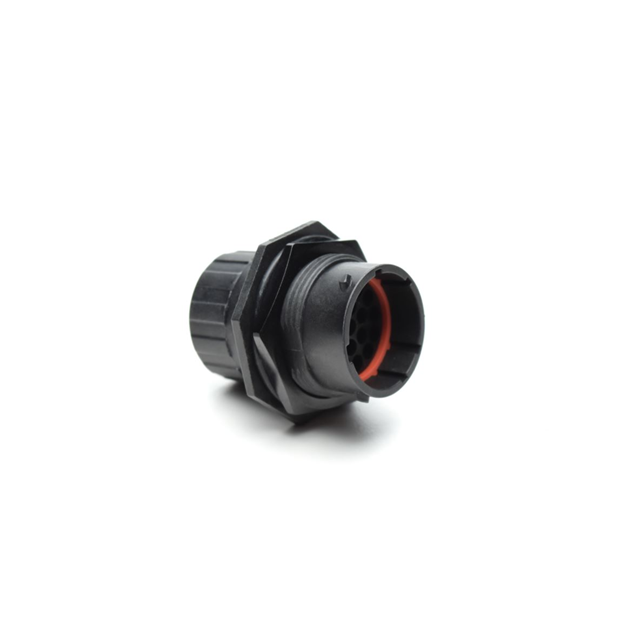

McGill Microwave Systems RTS716N19PHEC03	16 S	UL94 V-0	Panel Mount	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	19	Bayonet Lock	Black	Thermoplastic	Bulkhead Front Side Nut	Unshielded	Receptacle Housing	N (Normal)	For Male Pins			Thermoplastic	Circular	Contacts Not Included	125 °C	-40 °C	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	19	16 S	Backshell
