1223 Series

Catalog

RF / COAXIAL CONNECTOR, TNC COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG214, BRASS

Part	Impedance	Mounting Type	Fastening Type	Connector Type	Frequency - Max	Cable Group	Housing Color	Contact Termination	Number of Ports	Connector Style	Shield Termination	Center Contact Material	Mating Cycles	Center Contact Plating	Insertion Loss	Voltage Rating	Body Finish	Dielectric Material	Body Material	Includes Total Count	Includes	Ingress Protection	Features	Mounting Feature	Adapter Series	Adapter Type	Style	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)
McGill Microwave Systems 122398	50 Ohm	Free Hanging (In-Line)	Threaded	Male Pin Plug	11 GHz	213 214 225 302 393 87 8A 9 9A 9B RG-8	Silver	Crimp	1	TNC	Crimp	Brass	500 cycles	Gold	0.18 dB	500 V	Nickel	Polytetrafluoroethylene (PTFE)	Brass	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 122397	50 Ohm	Free Hanging (In-Line)	Threaded	Male Pin Plug	11 GHz	9914 Belden 9913 LMR-400	Silver	Solder	1	TNC	Clamp	Brass	500 cycles	Gold	0.18 dB	500 V	Nickel	Polytetrafluoroethylene (PTFE)	Brass	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer	Weatherproof
McGill Microwave Systems 122334	50 Ohm	Panel Mount	Threaded	Female Socket Recepture	11 GHz		Silver	Solder Cup	1	TNC	Solder Tag	Phosphor Bronze	500 cycles	Gold	0.18 dB	500 V	Nickel	Polyoxymethylene (POM) Acetal	Brass	4 pcs	Connector Lockwasher Nut Solder Tag		Extended Insulation	Bulkhead Rear Side Nut
McGill Microwave Systems 122344	50 Ohm	Panel Mount	Threaded		11 GHz							Phosphor Bronze		Gold			Nickel	Polyoxymethylene (POM) Acetal	Brass	3 pcs	Connector Lockwasher Nut			Bulkhead	TNC to TNC	Jack to Jack	Straight	Female Socket TNC Jack	Female Socket TNC Jack	Same Series	Female

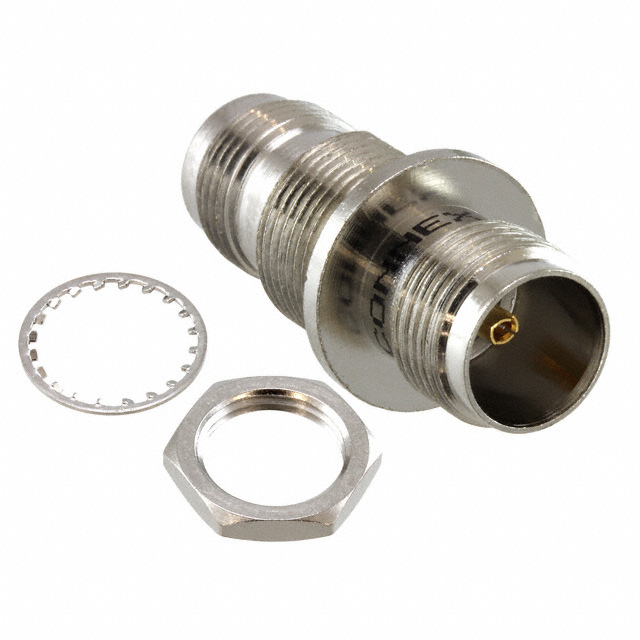

McGill Microwave Systems 122345	75 Ohm	Panel Mount	Threaded		1 GHz												Nickel	Polyoxymethylene (POM) Acetal		3 pcs	Connector Lockwasher Nut			Bulkhead	TNC to TNC	Jack to Jack	Straight	Female Socket TNC Jack	Female Socket TNC Jack	Same Series	Female
McGill Microwave Systems 122350	50 Ohm	Free Hanging (In-Line)	Threaded		11 GHz							Brass		Gold			Nickel	Polyoxymethylene (POM) Acetal	Brass						TNC to TNC	Plug to Plug	Straight		Male Pin TNC Plug	Same Series	Male	TNC Plug	Male Pin	-40 °C	85 °C
McGill Microwave Systems 122330	50 Ohm	Panel Mount	Threaded	Male Pin Receptacle	11 GHz		Silver	Solder Cup	1	TNC	Solder Tag	Brass	500 cycles	Gold	0.18 dB	500 V	Nickel	Polytetrafluoroethylene (PTFE)	Brass	4 pcs	Connector Lockwasher Nut Solder Tag			Bulkhead Rear Side Nut
McGill Microwave Systems 122358	50 Ohm	Panel Mount	Threaded	Female Socket Jack	11 GHz	188 316 Double Braid M17/152-RD316 RG-179	Silver	Crimp	1	TNC	Crimp	Beryllium Copper	500 cycles	Gold	0.18 dB	500 V	Nickel	Polyoxymethylene (POM) Acetal	Brass	7 pcs	Connector Contact Ferrule Gasket Lockwasher Nut Sleeve			Bulkhead Front Side Nut
McGill Microwave Systems 122389	50 Ohm	Panel Mount	Threaded	Female Socket Jack	11 GHz	RG-405	Silver	Crimp	1	TNC	Solder	Phosphor Bronze	500 cycles	Gold	0.18 dB	500 V	Nickel	Polytetrafluoroethylene (PTFE)	Brass	3 pcs	Connector Contact Insulator			Flange										-65 °C	165 °C	0.085 in	0.086 in
McGill Microwave Systems 122346	50 Ohm	Panel Mount	Threaded		11 GHz							Phosphor Bronze		Gold			Nickel	Polyoxymethylene (POM) Acetal	Brass	3 pcs	Connector Lockwasher Nut		Isolated	Bulkhead	TNC to TNC	Jack to Jack	Straight	Female Socket TNC Jack	Female Socket TNC Jack	Same Series	Female
