RTHP01 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN RCPT MALE 1P SOLDER EYELET
| Part | Orientation | Primary Material | Termination | Connector Type | Current Rating | Shell Material | Voltage Rating | Contact Finish - Mating | Shielding | Mounting Type | Mounting Feature | Number of Positions | Ingress Protection Description | Ingress Protection IP Rating | Operating Temperature (Max) | Operating Temperature (Min) | Color | Shell Size - Insert Length | Shell Size - Insert Width | Fastening Type | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

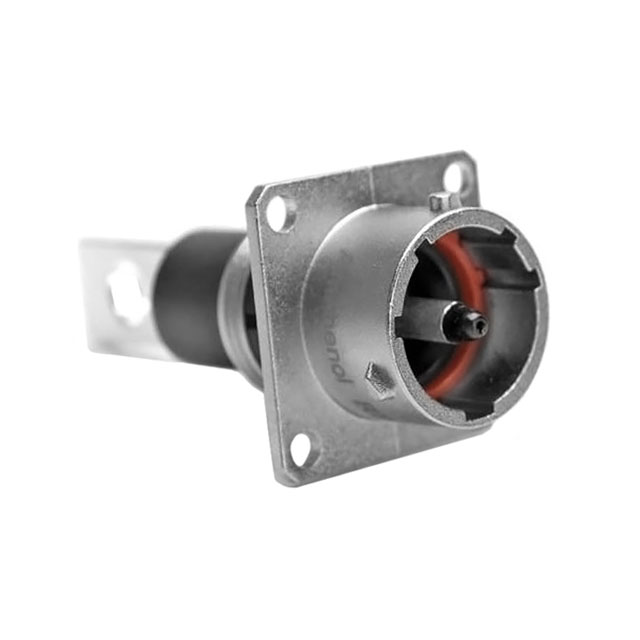

 McGill Microwave Systems | N (Normal) | Metal | Solder Eyelet(s) | Male Pins Receptacle | 86 A | Zinc Die Cast | 630 V | Silver | Shielded | Panel Mount | Flange | 1 | Dust Tight Waterproof | IP67 | 125 °C | -40 °C | Silver | 12 mm | 1 mm | Bayonet Lock | Nickel |

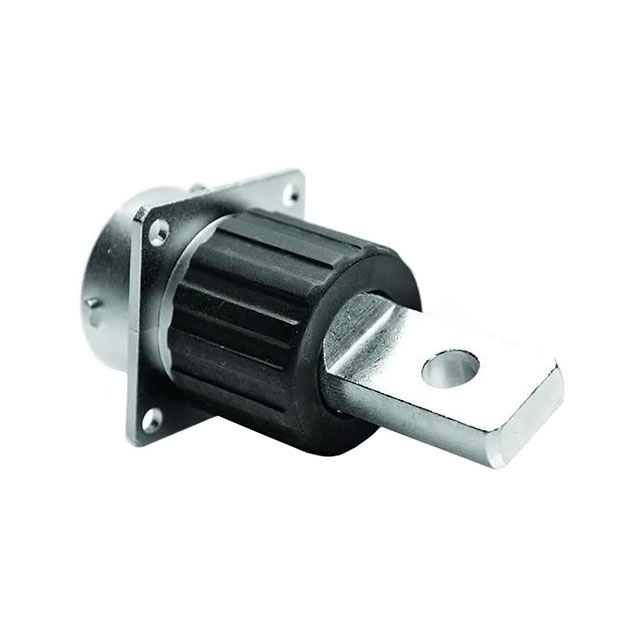

 McGill Microwave Systems | N (Normal) | Metal | Solder Eyelet(s) | Male Pins Receptacle | 180 A | Zinc Die Cast | 630 V | Silver | Shielded | Panel Mount | Flange | 1 | Dust Tight Waterproof | IP67 | 125 °C | -40 °C | Silver | 16 mm | 1 mm | Bayonet Lock | Nickel |
