RTS6BS16 Series

Catalog

CONN PLUG HSNG MALE 19POS INLINE

Part	Contact Type	Shielding	Connector Type	Mounting Type	Type	Contact Size	Ingress Protection IP Rating	Ingress Protection Description	Fastening Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Housing Color	Orientation	Material Flammability Rating	Number of Positions	Features	Shell Material	Contact Shape	Note	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Length	Shell Size - Insert Width	Includes	Includes Total Count
McGill Microwave Systems RTS6BS16N19P03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	19	16 S	Black	N (Normal)	UL94 V-0	19	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C
McGill Microwave Systems RTS6BS16N26S03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Female Sockets	20	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	26	16 S	Black	N (Normal)	UL94 V-0	26	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C
McGill Microwave Systems RTS6BS16N4PHEC03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock			Black	N (Normal)	UL94 V-0	4	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C	16 mm	4 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs
McGill Microwave Systems RTS6BS16N26P03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	20	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	26	16 S	Black	N (Normal)	UL94 V-0	26	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C

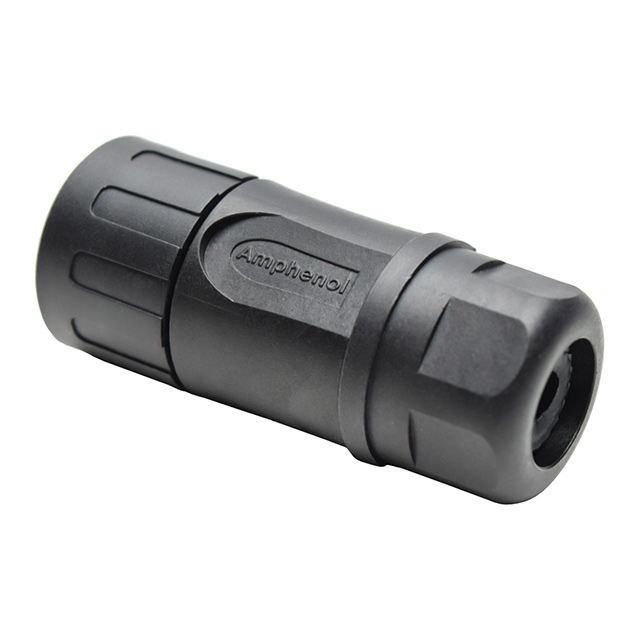

McGill Microwave Systems RTS6BS16N09P03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	2.5 mm 16	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock			Black	N (Normal)	UL94 V-0	9	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C	16 mm	9 mm
McGill Microwave Systems RTS6BS16N19SHEC03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Female Sockets	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	19	16 S	Black	N (Normal)	UL94 V-0	19	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C			Backshell Connector O-Ring Ring Seal Washer	6 pcs
McGill Microwave Systems RTS6BS16N19PHEC03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	19	16 S	Black	N (Normal)	UL94 V-0	19	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C			Backshell Connector O-Ring Ring Seal Washer	6 pcs

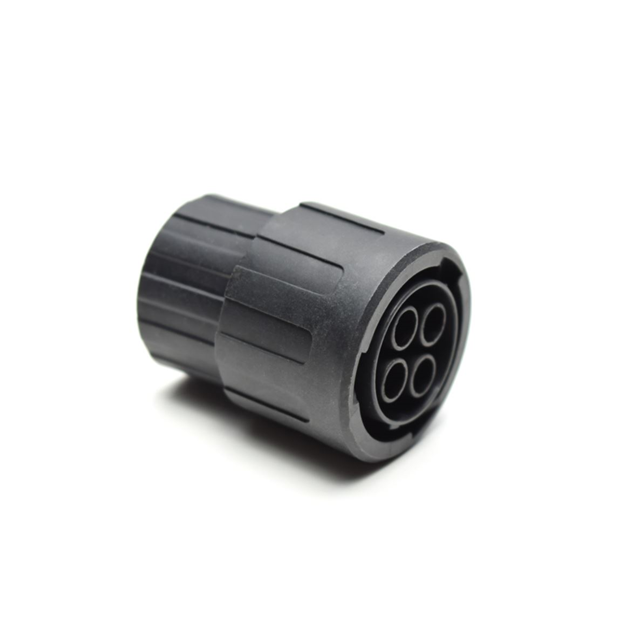

McGill Microwave Systems RTS6BS16N4SHEC03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Female Sockets	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock			Black	N (Normal)	UL94 V-0	4	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C	16 mm	4 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs

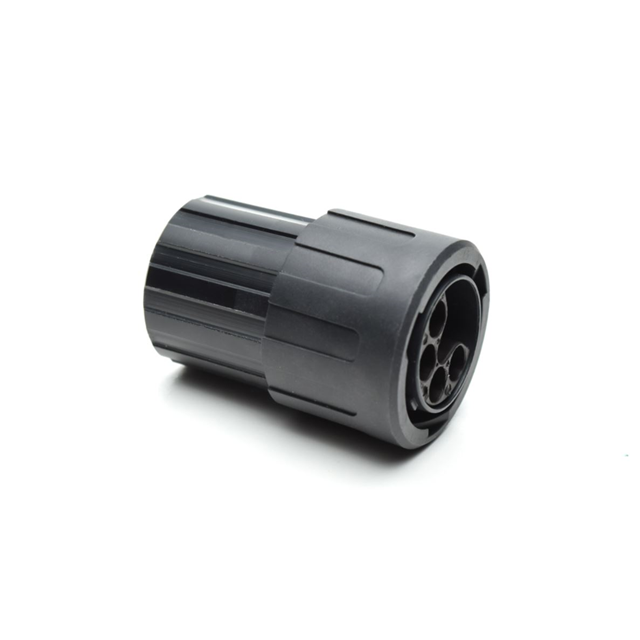

McGill Microwave Systems RTS6BS16N09PHEC03	Crimp	Unshielded	Plug Housing	Free Hanging (In-Line)	For Male Pins	2.5 mm 16	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock			Black	N (Normal)	UL94 V-0	9	Backshell Coupling Nut	Thermoplastic	Circular	Contacts Not Included	Thermoplastic	125 °C	-40 °C	16 mm	9 mm	Backshell Connector O-Ring Ring Seal Washer	6 pcs
