LMR-100 Series

Catalog

COAXIAL CABLES INDOOR/OUTDOOR BLACK NON-HALOGEN JACKET

Part	Cable Type	Conductor Strand	Jacket (Insulation) Material	Jacket Color	Shield Type	Length	Jacket (Insulation) Diameter	Features	Impedance	Conductor Material	Spool Size	Shield Material	Operating Temperature (Min)	Operating Temperature (Max)	Velocity of Propagation (VoP)	Dielectric Diameter	Dielectric Material	Length	Cable Group
McGill Microwave Systems LMR-100A-FR	Coaxial	Solid	Polyethylene (PE)	Black	Braid	Enter Number of Feet in Order Quantity	0.11 in	Fire Retardant	50 Ohm	Copper Coated Steel	500 ft	Aluminum Copper Tinned	-40 °C	85 °C	66 %	0.06 in	Polyethylene (PE)
McGill Microwave Systems LMR-100A-PUR	Coaxial	Solid	Polyurethane (PU)	Black	Braid	Enter Number of Feet in Order Quantity	0.11 in		50 Ohm	Copper Coated Steel		Aluminum Copper Tinned	-40 °C	85 °C	66 %	0.06 in	Polyethylene (PE)

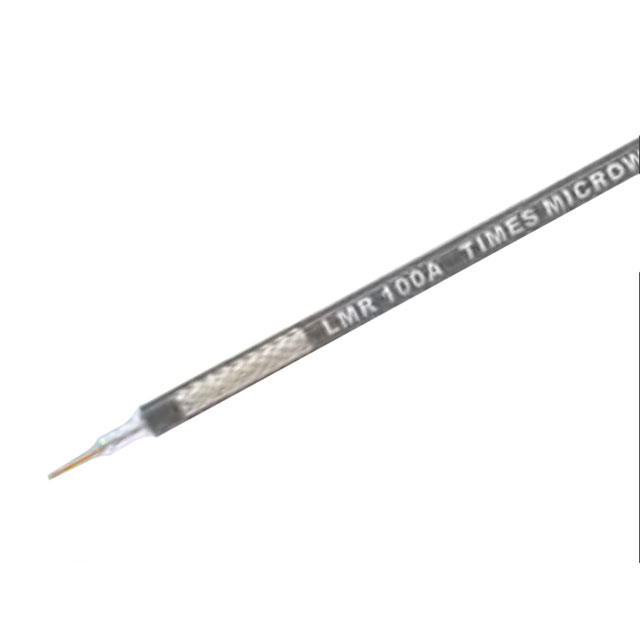

McGill Microwave Systems LMR-100A-PVC	Coaxial	Solid	Poly-Vinyl Chloride (PVC)	Black	Braid	Enter Number of Feet in Order Quantity	0.11 in		50 Ohm	Copper Coated Steel	500 ft	Aluminum Copper Tinned	-40 °C	85 °C	66 %	0.06 in	Polyethylene (PE)
McGill Microwave Systems LMR-100A-UF	Coaxial	Solid	Thermoplastic Elastomer (TPE)	Black	Braid	Enter Number of Feet in Order Quantity	0.11 in		50 Ohm	Bare Copper Copper Coated Steel Steel Covered		Aluminum Copper Tinned	-40 °C	85 °C	66 %	0.06 in	Polyethylene (PE)	12 in	LMR-100
McGill Microwave Systems LMR-100A-PVC-W	Coaxial	Solid	Poly-Vinyl Chloride (PVC)	White	Braid	Enter Number of Feet in Order Quantity	0.11 in		50 Ohm	Copper Coated Steel	500 ft	Aluminum Copper Tinned	-40 °C	85 °C	66 %	0.06 in	Polyethylene (PE)
