NFR25H Series

Catalog

THROUGH HOLE METAL FILM RESISTOR, NFR25H SERIES, 47 OHM, 500 MW, - 5%, 350 V, AXIAL LEADED ROHS COMPLIANT: YES

Part	Size / Dimension Length	Size / Dimension Diameter	Features	Number of Terminations	Composition	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient	Power (Watts)	Power (Watts) Options	Tolerance	Package / Case	Resistance
Vishay Dale NFR25H0004709JA500	0.256 in	0.098 in	Flame Proof Fusible Safety	2	Metal Film	Axial	155 °C	-55 °C	100 ppm/°C	500 mW	1/2W	5 %	Axial	47 Ohms

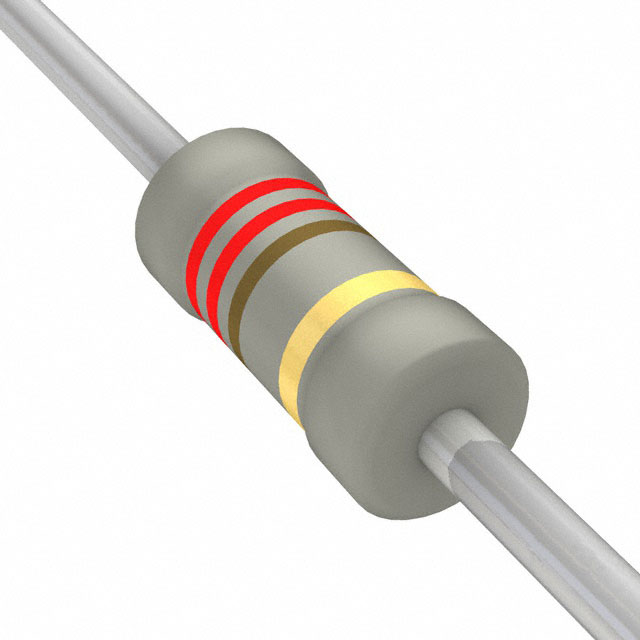

Vishay Dale NFR25H0002200JR500	0.256 in	0.098 in	Flame Proof Fusible Safety	2	Metal Film	Axial	155 °C	-55 °C	100 ppm/°C	500 mW	1/2W	5 %	Axial	220 Ohm
Vishay Dale NFR25H0006807JR500	0.256 in	0.098 in	Flame Proof Fusible Safety	2	Metal Film	Axial	155 °C	-55 °C	200 ppm/°C	500 mW	1/2W	5 %	Axial	680 mOhms

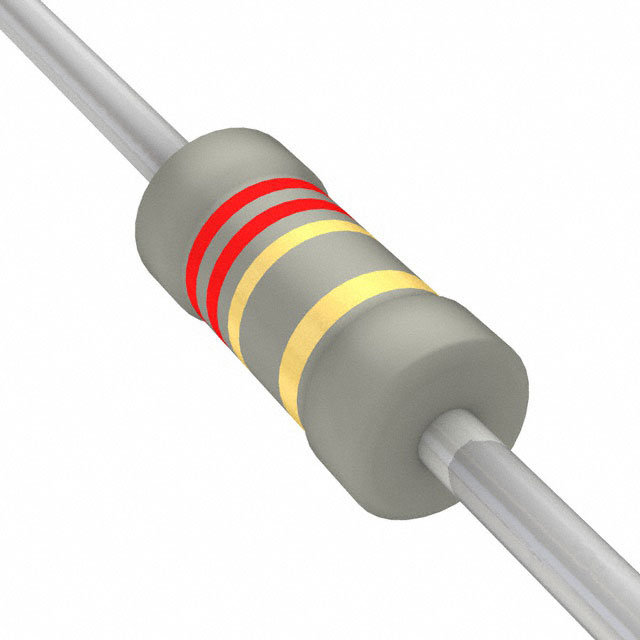

Vishay Dale NFR25H0002208JA100	0.256 in	0.098 in	Flame Proof Fusible Safety	2	Metal Film	Axial	155 °C	-55 °C	200 ppm/°C	500 mW	1/2W	5 %	Axial	2.2 Ohm
