VQ21 Series

Catalog

TERM BLK 21P SIDE ENT 3.81MM PCB

Part	Screw Thread	Torque - Screw	Clamp Material	Clamp Plating	Screw Plating	Screw Material	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Positions Per Level	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Pitch	Wire Termination	Voltage	Color	Current	Mating Orientation	Type	Voltage - Supply	Output	Current - Supply	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
McGill Microwave Systems VQ2131500000G	M2	0.2 Nm	Brass	Nickel Plated	Zinc Plated	Steel	Thermoplastic	-40 °C	115 °C	1	21	16 AWG	30 AWG	Through Hole	0.15 in	Rising Cage Clamp Screw	300 V	Green	10 A	Horizontal with Board
McGill Microwave Systems VQ2111510000G	M2	0.2 Nm	Brass	Nickel Plated	Zinc Plated	Steel	Thermoplastic	-40 °C	115 °C	1	21	16 AWG	30 AWG	Press-Fit Through Hole	0.138 in	Rising Cage Clamp Screw	300 V	Green	10 A	Horizontal with Board

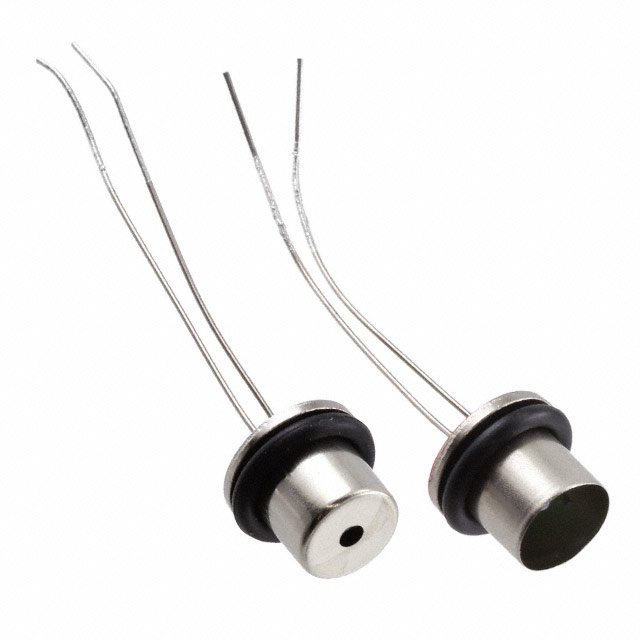

McGill Microwave Systems VQ21TB																					Flammable Gas Hydrocarbons	2 V	Voltage	300 mA

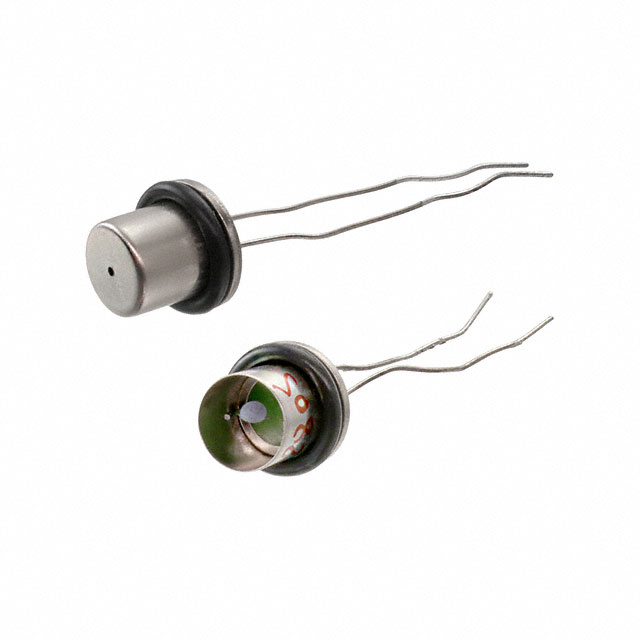

McGill Microwave Systems VQ21TSB																					Flammable Gas Hydrogen (H2)	2 V	Voltage	300 mA	1.9 V	2.1 V
McGill Microwave Systems VQ2131510000G	M2	0.2 Nm	Brass	Nickel Plated	Zinc Plated	Steel	Thermoplastic	-40 °C	115 °C	1	21	16 AWG	30 AWG	Press-Fit Through Hole	0.15 in	Rising Cage Clamp Screw	300 V	Green	10 A	Horizontal with Board
McGill Microwave Systems VQ2111500000G	M2	0.2 Nm	Brass	Nickel Plated	Zinc Plated	Steel	Thermoplastic	-40 °C	115 °C	1	21	16 AWG	30 AWG	Through Hole	0.138 in	Rising Cage Clamp Screw	300 V	Green	10 A	Horizontal with Board
