XEGABL Series

Catalog

XLAMP XEG BLUE LED

Part	Temperature - Test	Mounting Type	Wavelength	Size / Dimension Length	Size / Dimension Width	Package / Case	Voltage - Forward (Vf) (Typ)	Package Name	Current - Test	Height - Seated (Max)	Color	Luminous Flux	Viewing Angle	Current - Max

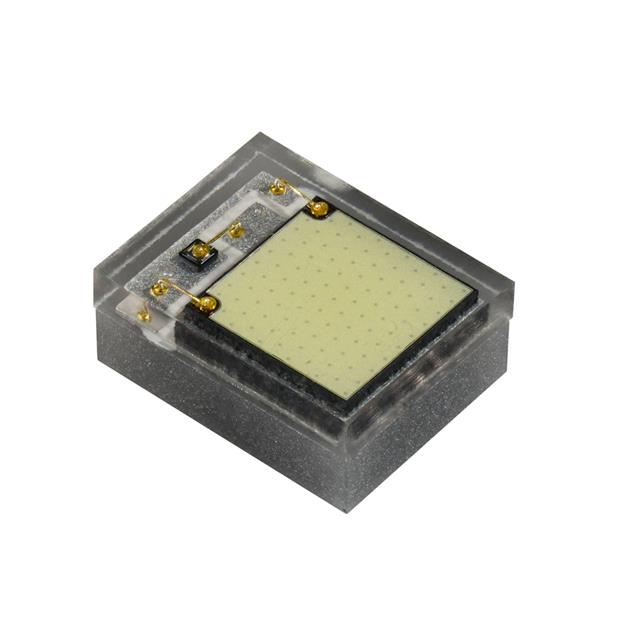

CreeLED, Inc. XEGABL-H0-0000-000-000000P3004	25 °C	Surface Mount	470 nm	0.081 in	0.063 in	3-SMD No Lead	3.05 V	3-SMD	1 A	0.044 in	Blue	74 lm	125 °	3 A
CreeLED, Inc. XEGABL-H0-0000-000-000000P3006	25 °C	Surface Mount	480 nm	0.081 in	0.063 in	3-SMD No Lead	3.05 V	3-SMD	1 A	0.044 in	Blue	74 lm	125 °	3 A
CreeLED, Inc. XEGABL-H0-0000-000-000000P3001	25 °C	Surface Mount	475 nm	0.081 in	0.063 in	3-SMD No Lead	3.05 V	3-SMD	1 A	0.044 in	Blue	74 lm	125 °	3 A
