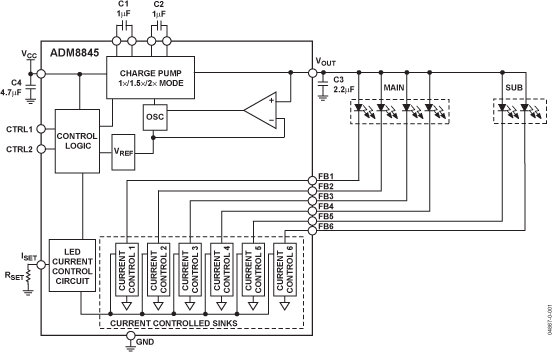

ADM8845 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
EVAL BOARD FOR ADM8845
| Part | Features | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Utilized IC / Part | Current - Output / Channel | Voltage - Output | Total Output Count | Output Type | Non-Isolated Output Count | Contents | Package / Case | Type | Number of Outputs | Frequency | Applications | Package Length | Package Name | Package Width | Internal Switch(s) | Topology | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Min) | Voltage - Supply (Max) | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Dimmable | 2.6 V | 5.5 V | ADM8845 | 20 mA | 5.5 V | 6 | Non-Isolated | 6 | Board Cable | ||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 30 mA | 16-VFQFN Exposed Pad CSP | DC DC Regulator | 6 | 1.5 MHz | Backlight Camera Flash | 3 mm | 16-LFCSP-VQ | 3 mm | Yes | Switched Capacitor (Charge Pump) | Surface Mount | 85 °C | -40 °C | 2.6 V | 5.5 V | ||||||||||
 Analog Devices Inc./Maxim Integrated | 30 mA | 16-VFQFN Exposed Pad CSP | DC DC Regulator | 6 | 1.5 MHz | Backlight Camera Flash | 3 mm | 16-LFCSP-VQ | 3 mm | Yes | Switched Capacitor (Charge Pump) | Surface Mount | 85 °C | -40 °C | 2.6 V | 5.5 V | PWM | |||||||||
 Analog Devices Inc./Maxim Integrated | 30 mA | 16-VFQFN Exposed Pad CSP | DC DC Regulator | 6 | 1.5 MHz | Backlight Camera Flash | 3 mm | 16-LFCSP-VQ | 3 mm | Yes | Switched Capacitor (Charge Pump) | Surface Mount | 85 °C | -40 °C | 2.6 V | 5.5 V | PWM |
