V708 Series

Catalog

TERM BLOCK HDR 8POS VERT 7.62MM

Part	Current - UL	Contact Mating Finish	Number of Levels	Voltage - UL	Header Orientation	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Type	Number of Positions	Mounting Type	Positions Per Level	Pitch	Features	Color	Contact Material	Material Flammability Rating	Contact Tail Length	Housing Material	Insulation Height	Header Orientation Angle
McGill Microwave Systems V70801500000G	20 A	Tin	1	300 V	Vertical	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.3 in	Retention Latches	Green	Copper	UL94 V-0	0.138 in	Thermoplastic	0.748 in
McGill Microwave Systems V70871500000G	10 A	Tin	1	300 V	Vertical	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.197 in	Retention Latches	Green	Phosphor Bronze	UL94 V-0	0.138 in	Thermoplastic	0.748 in

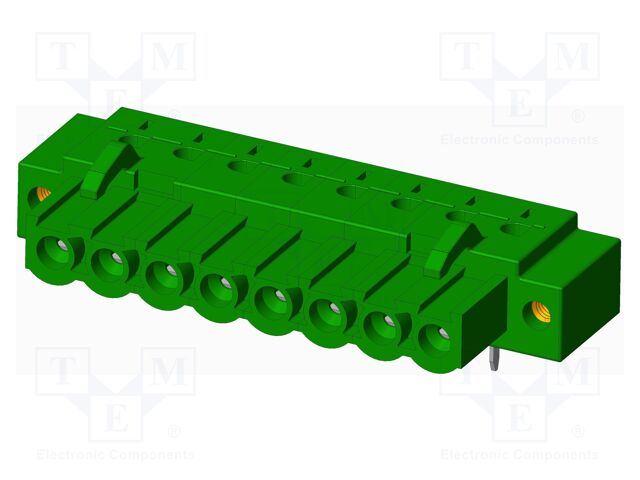

McGill Microwave Systems V70852510000G	20 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	5.08 mm	Mating Flange Retention Latches	Green	Copper	UL94 V-0	0.138 in	Thermoplastic		90 °

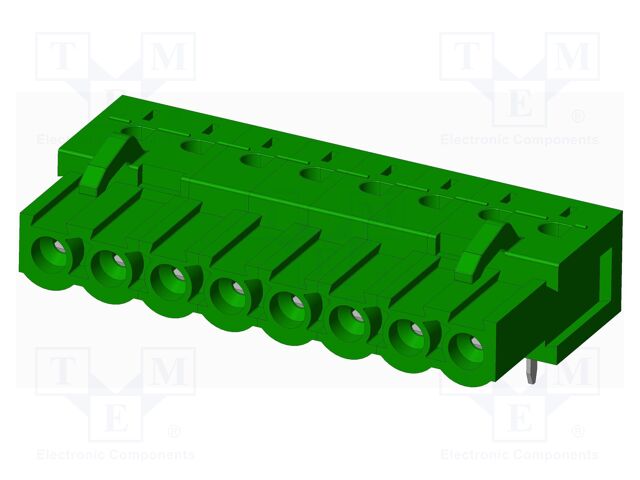

McGill Microwave Systems V70801510000G	20 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.3 in	Retention Latches	Green	Copper	UL94 V-0	0.138 in	Thermoplastic		90 °
McGill Microwave Systems V70831500000G	8 A	Tin	1	300 V	Vertical	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.15 in		Green	Phosphor Bronze	UL94 V-0	0.134 in	Thermoplastic	0.571 in

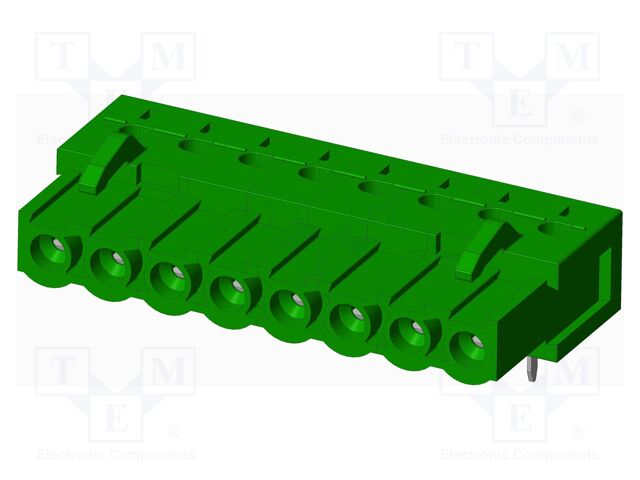

McGill Microwave Systems V70851510000G	20 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	5.08 mm	Retention Latches	Green	Copper	UL94 V-0	0.138 in	Thermoplastic		90 °

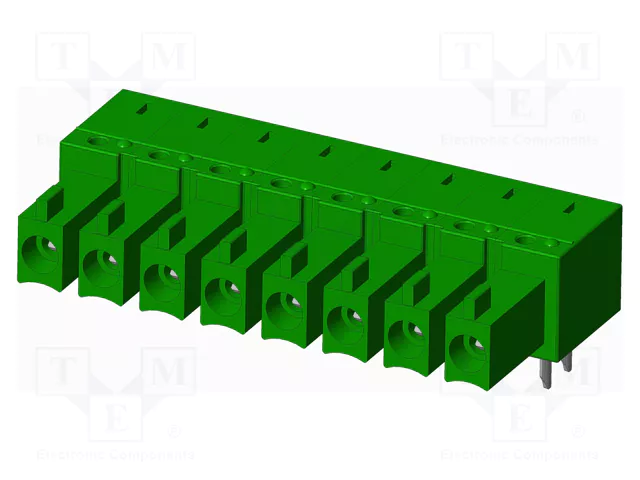

McGill Microwave Systems V70831510000G	8 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.15 in		Green	Phosphor Bronze	UL94 V-0	0.134 in	Thermoplastic	0.26 in	90 °
McGill Microwave Systems V70872510000G	10 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.197 in	Mating Flange Retention Latches	Green	Phosphor Bronze	UL94 V-0	0.138 in	Thermoplastic	0.425 in	90 °
McGill Microwave Systems V70871510000G	10 A	Tin	1	300 V	Right Angle	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	0.197 in	Retention Latches	Green	Phosphor Bronze	UL94 V-0	0.138 in	Thermoplastic		90 °

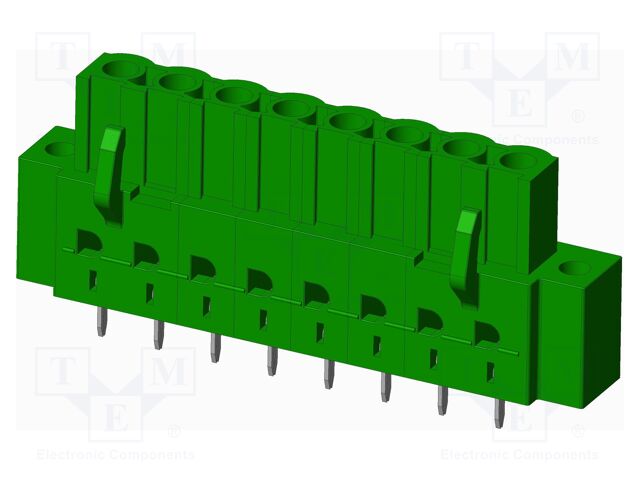

McGill Microwave Systems V70852500000G	20 A	Tin	1	300 V	Vertical	Solder	-40 °C	115 °C	Female Sockets Header	8	Through Hole	8	5.08 mm	Mating Flange Retention Latches	Green	Copper	UL94 V-0	0.138 in	Thermoplastic	0.748 in
