747709 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

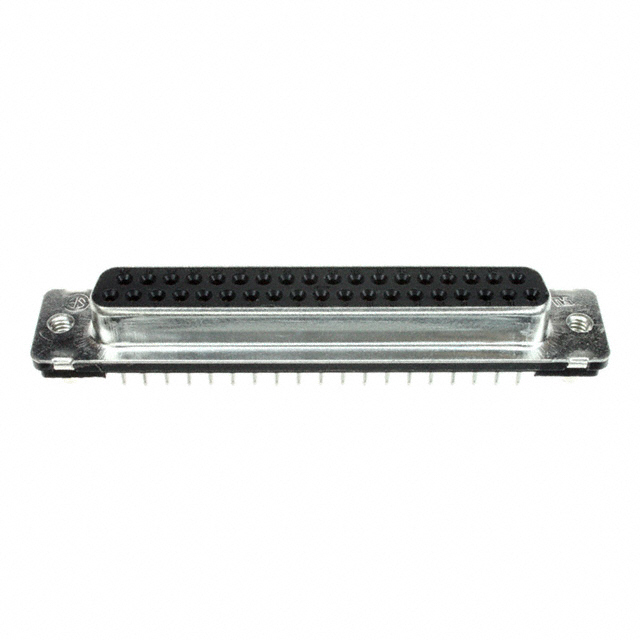

CONN D-SUB RCPT 37POS VERT SLDR
| Part | Number of Rows | Number of Positions | Shell Size, Connector Layout | Material Flammability Rating | Termination | Mounting Type | Current Rating (Amps) | Contact Type | Voltage Rating | Connector Type | Flange Feature | Color | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | 37 | 4 (DC C) | UL94 V-0 | Solder | Through Hole | 6 A | Signal | 125 VDC | Receptacle Female Sockets | Housing/Shell (4-40) | Black | D-Sub | 0.76 Ám | 30 Áin | Phosphor Bronze | Gold | 105 ░C | -55 °C | Thermoplastic |
