RM, Aquarius Series

Catalog

STANDARD CIRCULAR CONTACTS SOCKET CONTACT, STAMPED, SIZE 16, GOLD 5U" OVER NICKEL, WIRE RANGE .14-.25MM , 26-24 AWG, WITH 3 TANGS. 3,000 PCS. REEL

Part	Contact Termination	Contact Finish	Type	Features	Contact Size	Contact Type	Contact Material	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Finish Thickness	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination Finish
McGill Microwave Systems SS24M2G5	Crimp	Gold	Signal Stamped	Insulation Support	16 S	Socket	Copper Alloy	0.14 mm²	0.25 mm²	24 AWG	25.5 AWG	5 µin
McGill Microwave Systems SS14M2G15	Crimp	Gold	Signal Stamped	Insulation Support	16 S	Socket	Copper Alloy	2 mm²	2.5 mm²	14 AWG	16 AWG	15 µin
McGill Microwave Systems SP16M2G15	Crimp	Gold	Signal Stamped	Insulation Support	16 S	Pin	Copper Alloy	0.75 mm²	1.5 mm²	16 AWG	18 AWG	15 µin
McGill Microwave Systems SP24M2G30	Crimp	Gold	Signal Stamped	Insulation Support	16 S	Pin	Copper Alloy	0.14 mm²	0.25 mm²	24 AWG	25.5 AWG	30 µin
McGill Microwave Systems SS24M2N	Crimp	Nickel	Signal Stamped	Insulation Support	16 S	Socket	Copper Alloy	0.14 mm²	0.25 mm²	24 AWG	25.5 AWG
McGill Microwave Systems SP28W2G30	Crimp	Gold	Signal Stamped	Insulation Support	20	Pin	Copper Alloy	0.05 mm²	0.08 mm²	28 AWG	30 AWG	30 µin

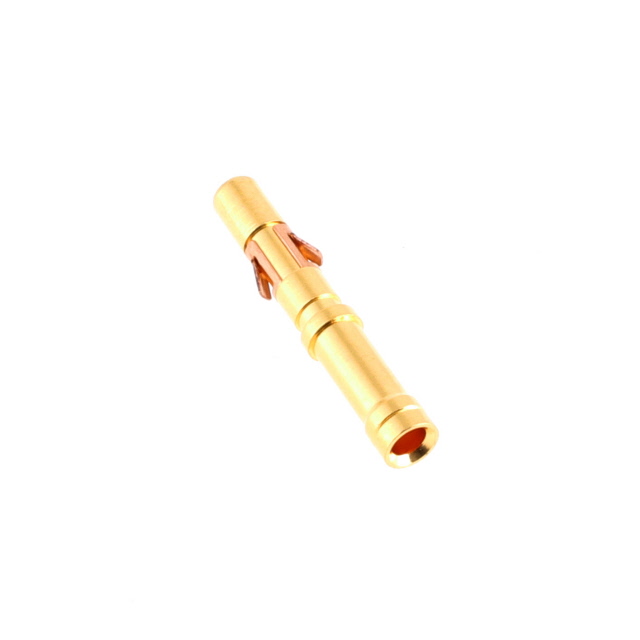

McGill Microwave Systems MS16M23G30	Crimp	Gold	Machined				Copper Alloy					30 µin	Socket	18 AWG	16 AWG
McGill Microwave Systems SS24M2F	Crimp	Gold	Signal Stamped	Insulation Support	16 S	Socket	Copper Alloy	0.14 mm²	0.25 mm²	24 AWG	25.5 AWG	0				Flash	Flash
McGill Microwave Systems MP16M23F	Crimp	Gold	Machined Signal		16 S	Pin	Copper Alloy	0.75 mm²	1.5 mm²	16 AWG	18 AWG	0				Flash	Flash	Copper Alloy
McGill Microwave Systems MS20W23F	Crimp	Gold	Machined Signal		20	Socket	Copper Alloy	0.34 mm²	0.5 mm²	20 AWG	22 AWG	0				Flash	Flash	Copper Alloy
