3811-40 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

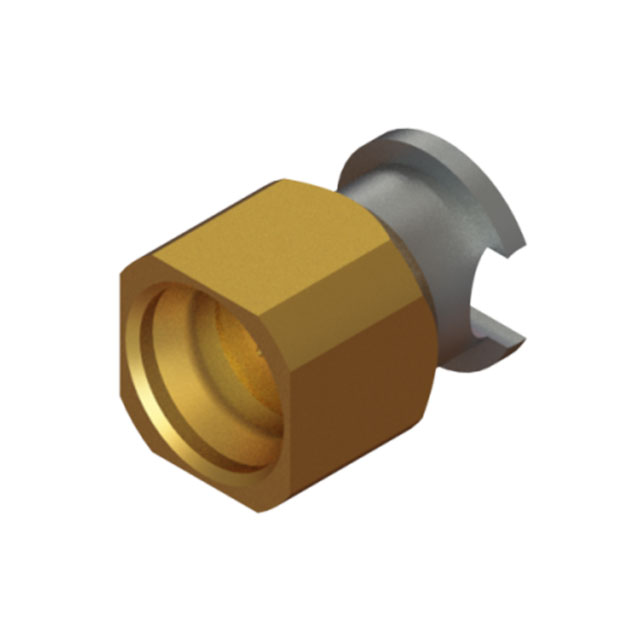

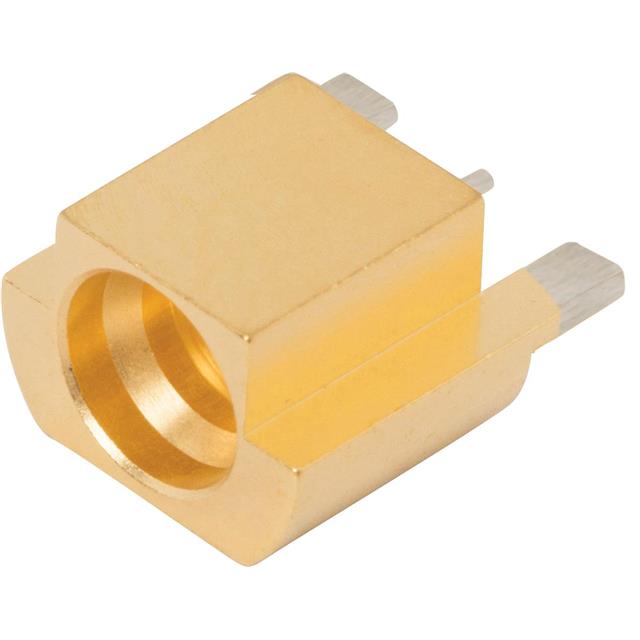

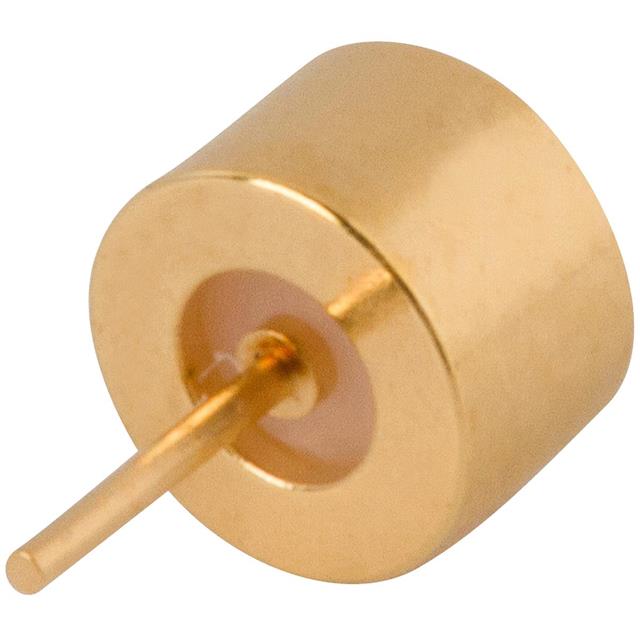

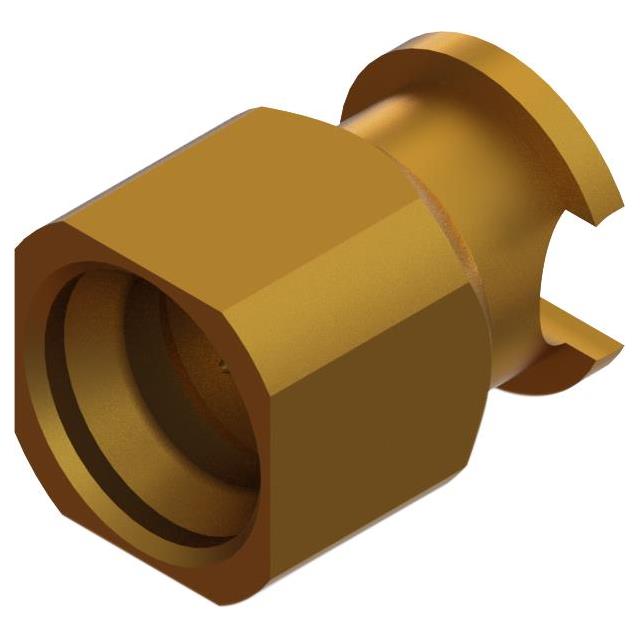

SMPS MALE PCB SURFACE MOUNT CONN
| Part | Housing Color | Impedance | Fastening Type | Center Contact Material | Contact Termination | Connector Type | Connector Style | Frequency - Max | Shield Termination | Mounting Type | Features | Number of Ports | Dielectric Material | Mating Cycles | Body Finish | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 65 GHz | Solder | Right Angle Surface Mount | Full Detent | 1 | Polyamide-Imide (PAI) | 100 cycles | Gold | Beryllium Copper | -65 °C | 165 °C | Gold |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 100 Gbps | Solder | Surface Mount | Full Detent | 1 | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | Solder | Surface Mount Through Hole | Full Detent | 1 | Polytetrafluoroethylene (PTFE) | 100 cycles | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 100 Gbps | Solder | Surface Mount | Smooth Bore | 1 | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | Solder | Surface Mount | Full Detent | 1 | Polytetrafluoroethylene (PTFE) | 100 cycles | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | Solder | Surface Mount Through Hole | Smooth Bore | 1 | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | Solder | Surface Mount | Smooth Bore | 1 | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | Beryllium Copper | -55 °C | 125 °C | Gold | |
 McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 65 GHz | Solder | Board Edge Cutout Surface Mount | Smooth Bore | 1 | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | Beryllium Copper | Gold | ||
McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 65 GHz | Solder | Board Edge Cutout Surface Mount | Full Detent | 1 | Polytetrafluoroethylene (PTFE) | 100 cycles | Gold | Beryllium Copper | Gold | ||
McGill Microwave Systems | Gold | 50 Ohm | Snap-On | Beryllium Copper | Solder | Male Pin Plug | SMPS | 65 GHz | Solder | Right Angle Surface Mount | Smooth Bore | 1 | Polyamide-Imide (PAI) | 500 cycles | Gold | Beryllium Copper | -65 °C | 165 °C | Gold |
