Q-3E04V0 Series

Catalog

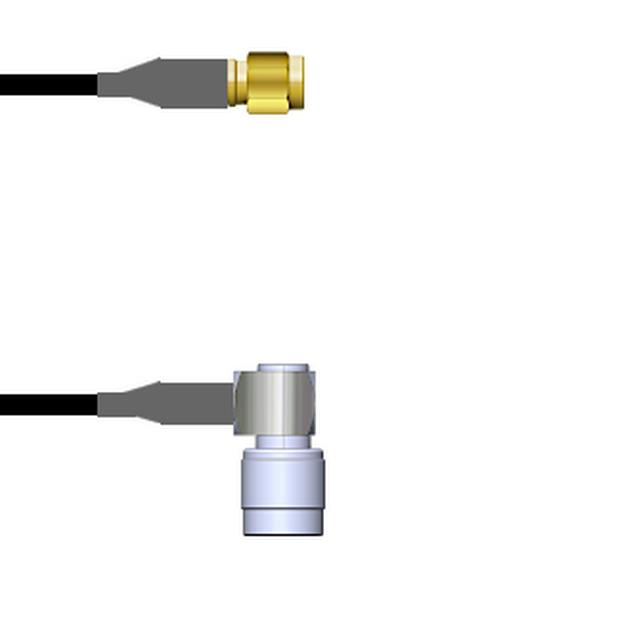

CBL ASSY SMA-TNC PLUG-PLG 29.53"

Part	Connector Impedance	Frequency - Max	Overall Impedance	2nd Connector	Style	Cable Type Size	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector	Features	2nd Contact Gender	Cable Impedance	1st Contact Gender	Length	Color	Length (ft)
McGill Microwave Systems Q-3E04V000D.75M	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	29.53 in	Black
McGill Microwave Systems Q-3E04V000D012I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	12 in	Black
McGill Microwave Systems Q-3E04V000D048I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	48 in	Black
McGill Microwave Systems Q-3E04V000D036I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	36 in	Black
McGill Microwave Systems Q-3E04V000D0.5M	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	19.69 in	Black
McGill Microwave Systems Q-3E04V000D060I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	1524 mm	Black	5 ft
McGill Microwave Systems Q-3E04V000D.25M	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	9.843 in	Black
McGill Microwave Systems Q-3E04V000D024I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	24 in	Black
McGill Microwave Systems Q-3E04V000D1.5M	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	59.1 in	Black	4.9 ft
McGill Microwave Systems Q-3E04V000D108I	50 Ohms	6000 MHz	50 Ohms	Right Angle TNC Plug	SMA TNC	195	LMR	Free Hanging (In-Line)	Free Hanging (In-Line)	SMA Plug	Shielded	Male	50 Ohms	Male	9 ft	Black
