HD Series
Manufacturer: PUI Audio, Inc.
Beta
⌘K

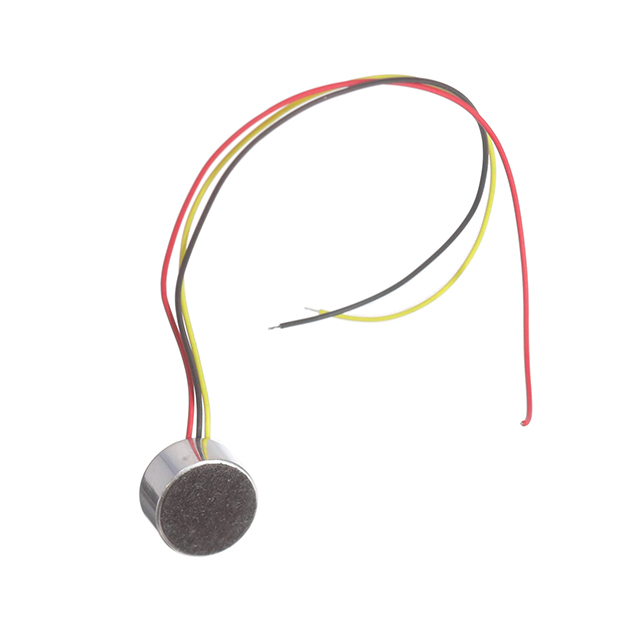

MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -35 DB, 135 DB AOP, 75DB SNR, 3 PINS, 1 TO 10 VDC
| Part | Output Type | S/N Ratio | Voltage - Rated | Size / Dimension Diameter | Current - Supply | Impedance | Direction | Frequency Range (Min) | Frequency Range (Max) | Height (Max) | Port Location | Voltage Range (Max) | Voltage Range (Min) | Shape | Termination | Sensitivity Tolerance | Sensitivity (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PUI Audio, Inc. | Analog | 75 dB | 5 VAC | 0.382 in | 600 µA | 2.2 kOhms | Omnidirectional | 20 Hz | 20 kHz | 0.197 in | Top | 10 V | 1 V | Circular | Wire Leads | 3 dB | -35 dB |
