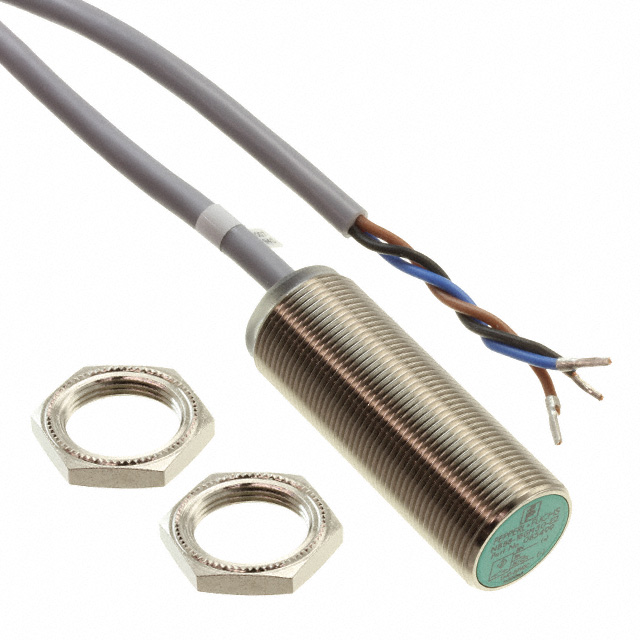

NBB8-18 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K
INDUCTIVE PROXIMITY SENSOR, 8 MM, 2-WIRE, 20 VDC TO 300 VDC
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Material - Body | Sensor Type | Indicator | Package / Case | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Ingress Protection | Output Type | Shielding | Sensing Distance | Termination Style | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | 300 VDC | 20 VAC | 250 VAC | 20 VDC | IP67 | 2-Wire SCR-NO | Unshielded | 0.315 " | Connector | ||
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | 300 VDC | 20 VAC | 250 VAC | 20 VDC | IP67 | 2-Wire SCR-NO | Unshielded | 0.315 " | Cable | ||
 Pepperl+Fuchs, Inc. | 85 °C | -40 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP68 IP69K | 3-Wire PNP-NO | Unshielded | 0.315 " | Connector | 60 V | 5 V | ||||
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP67 | 4-Wire NO PNP-NC | Unshielded | 0.315 " | Cable | 30 VDC | 10 VDC | ||||
 Pepperl+Fuchs, Inc. | 70 °C | -40 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP67 | 4-Wire NO PNP-NC | Unshielded | 0.315 " | Connector | 30 VDC | 10 VDC | ||||
 Pepperl+Fuchs, Inc. | 70 °C | -40 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP67 | 3-Wire PNP-NO | Unshielded | 0.315 " | Connector | 30 VDC | 10 VDC | ||||
Pepperl+Fuchs, Inc. | 85 °C | -40 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP68 IP69K | 3-Wire NPN-NO | Unshielded | 0.315 " | Connector | 60 V | 5 V | ||||
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP67 | 3-Wire PNP-NO | Unshielded | 0.315 " | Cable | 30 VDC | 10 VDC | ||||
 Pepperl+Fuchs, Inc. | 85 °C | -40 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP68 IP69K | 3-Wire PNP-NO | Unshielded | 0.315 " | Cable | 60 V | 5 V | ||||
 Pepperl+Fuchs, Inc. | 70 °C | -25 °C | Nickel-Plated Brass | Inductive | LED | Cylinder Threaded - M18 | IP67 | 4-Wire NO NPN-NC | Unshielded | 0.315 " | Cable | 30 VDC | 10 VDC |
