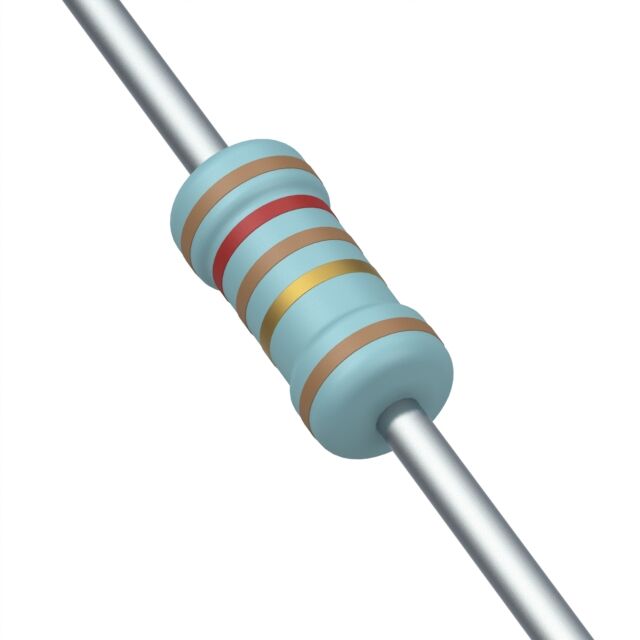

MBA0204 HF Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE MBA/SMA 0204-50 1% HF C1 12R1

Part	Package / Case	Size / Dimension Length	Size / Dimension Diameter	Tolerance	Temperature Coefficient	Number of Terminations	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Power (Watts)	Composition	Features	Package Name
Vishay Dale MBA0204AC1219FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	12.1 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC1200FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	120 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC1209FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	12 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC4649FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	46.4 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC8209GC100	Axial	0.142 in	0.063 in	2 %	50 ppm/°C	2	155 °C	-55 °C	82 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC1789FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	17.8 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
Vishay Dale MBA0204AC1829FC100	Axial	0.142 in	0.063 in	1 %	50 ppm/°C	2	155 °C	-55 °C	18.2 Ohm	0.4 W	Thin Film	High Frequency RF	Axial
