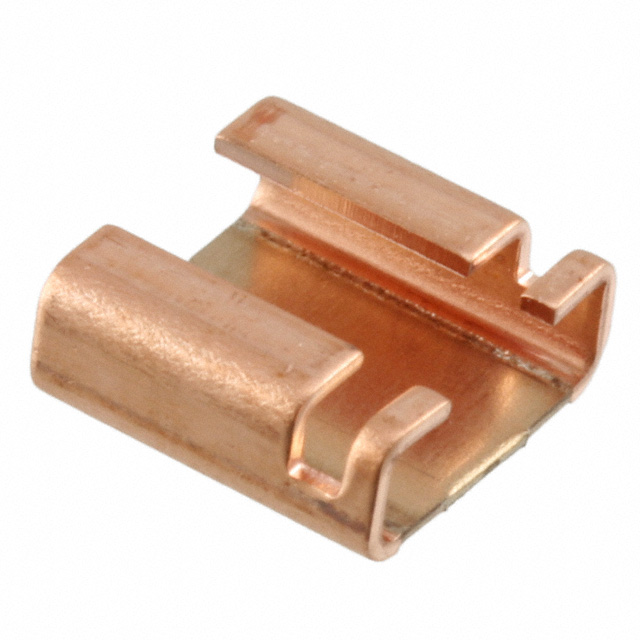

WSLP2726 Series
Manufacturer: Vishay Dale
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 0.002OHMS 1%
| Part | Ratings | Composition | Size / Dimension Length | Size / Dimension Width | Power (Watts) | Resistance | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Temperature Coefficient | Tolerance | Features | Package Name | Height - Seated (Max) | Number of Terminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | AEC-Q200 | Metal Element | 0.272 in | 0.26 in | 5 W | 2 mOhms | Nonstandard | -65 °C | 170 °C | 75 ppm/¯C | 1 % | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2726 | 0.122 in | 4 |
 Vishay Dale | Metal Element | 0.272 in | 0.26 in | 5 W | 5 mOhms | Nonstandard | -65 °C | 170 °C | 75 ppm/¯C | 1 % | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2726 | 0.118 in | 4 | |
Vishay Dale | Metal Element | 0.272 in | 0.26 in | 7 W | 0.5 mOhms | Nonstandard | -65 °C | 170 °C | 75 ppm/¯C | 1 % | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2726 | 0.124 in | 4 | |
Vishay Dale | AEC-Q200 | Metal Element | 0.272 in | 0.26 in | 5 W | 4 mOhms | Nonstandard | -65 °C | 170 °C | 75 ppm/¯C | 1 % | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant Pulse Withstanding | 2726 | 0.118 in | 4 |
