V1S-W Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

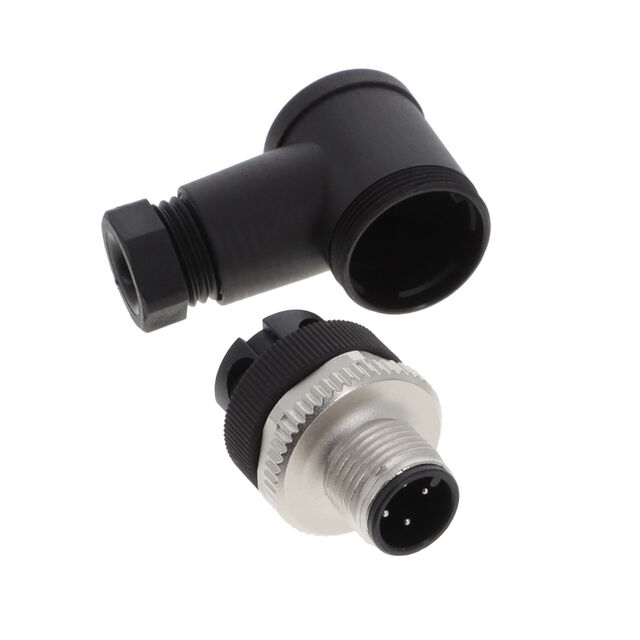

CONN PLUG MALE 4P COPPER SCREW
| Part | Connector Type | Termination | Orientation | Fastening Type | Shielding | Color | Ingress Protection Description | Ingress Protection IP Rating | Contact Material | Current Rating | Cable Opening (Min) | Cable Opening (Max) | Number of Positions | Backshell Material, Plating | Mounting Type | Applications | Features | Primary Material | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Voltage Rating (Type) | Shell Material | Contact Finish - Mating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Male Pins Plug | Screw | Keyed | Threaded | Unshielded | Black Silver | Dust Tight Waterproof | IP67 | Copper Zinc | 4 A | 0.157 in | 0.236 in | 4 | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) Right Angle | Industrial Automation | Backshell | Metal | -40 °C | 85 °C | 250 V | DC | Copper Zinc | Copper Tin Zinc | M12-4 |
