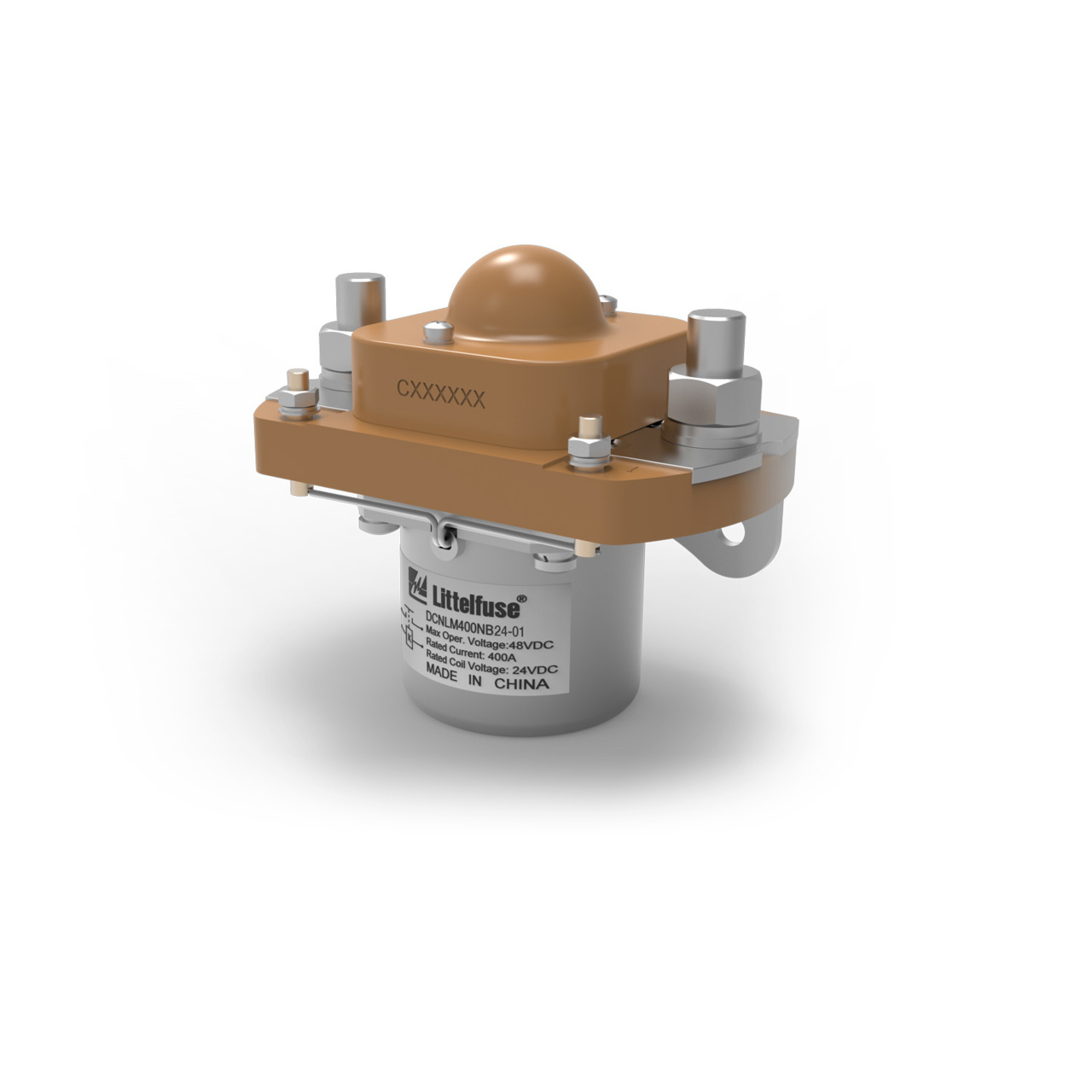

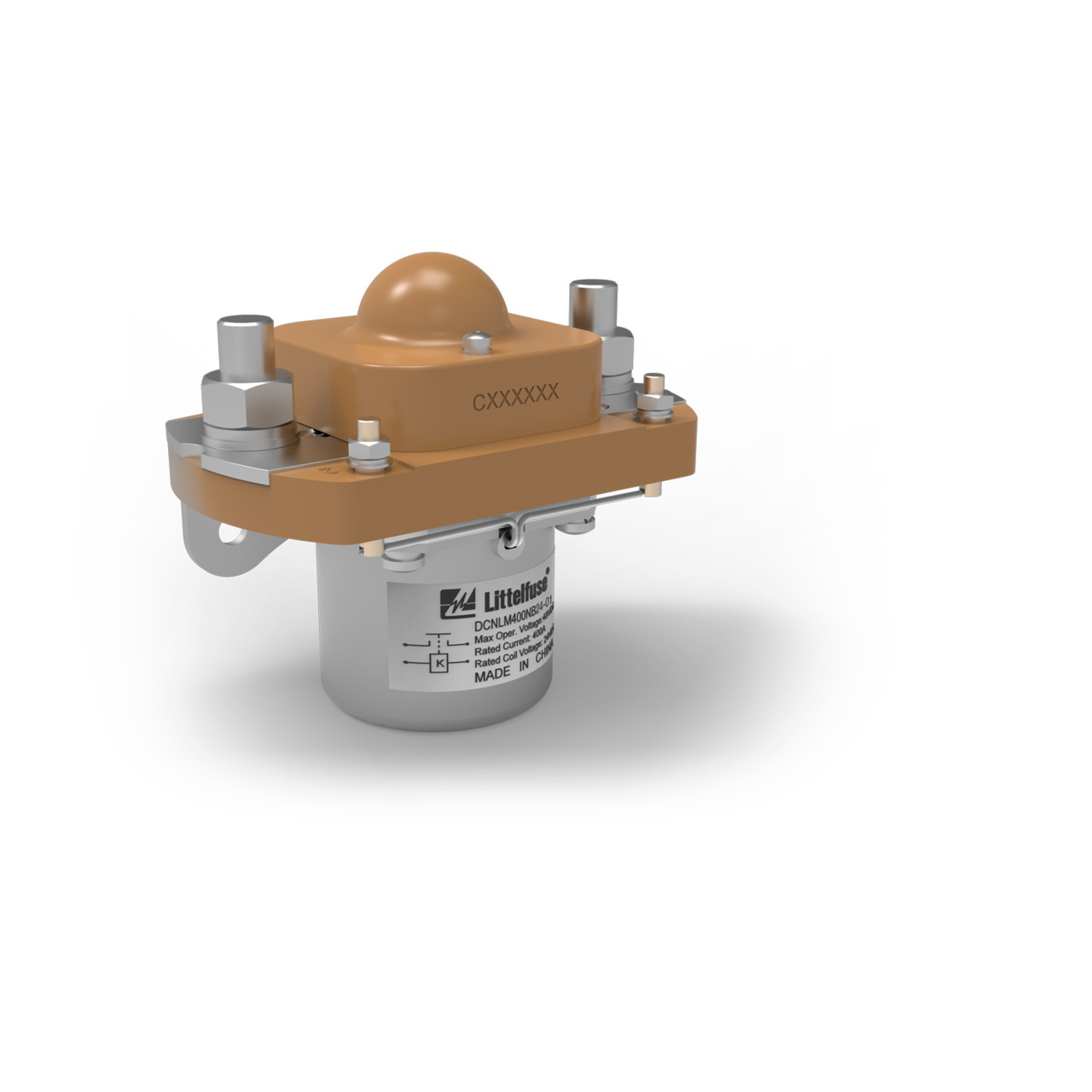

DCNLM400NB24-01 Series

DCNLM 400A 48V NP NO 24V 2Coil Contactor

Catalog

DCNLM 400A 48V NP NO 24V 2Coil Contactor

Part	Termination Style	Form A Count	Contact Form	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)
LITTELFUSE DCNLM400NB24-01	Stud	1	SPST-NO	24 VDC	2 VDC	400 A	16.8 VDC	Chassis Mount	-40 °C	70 °C	60 VDC

Catalog

DCNLM 400A 48V NP NO 24V 2Coil Contactor

Description

The DCNLM Series 60V High-Current DC Contactor Relay features 400A contact switching capability with a 24V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS).This configuration of the DCNLM normally open, high-current DC contactor (DCNLM400NB24-01) features 60V non-polarized main contacts and a single-coil design.
