FLS614N Series

Catalog

4 POSITION PLUG, SOCKET, SHELL S

Part	Shell Size - Insert Width	Shell Size - Insert Length	Primary Material	Ingress Protection IP Rating	Ingress Protection Description	Features	Insert Material	Shielding	Housing Color	Contact Type	Orientation	Contact Shape	Number of Positions	Material Flammability Rating	Shell Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Mounting Type	Fastening Type	Type	Contact Size	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)

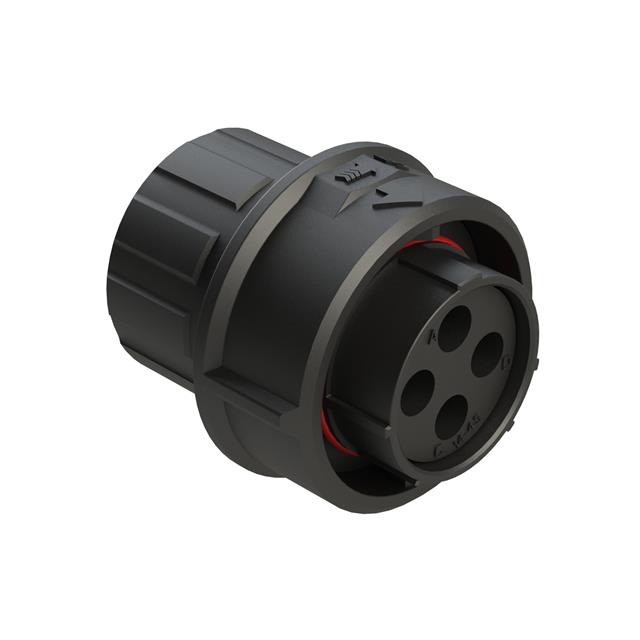

McGill Microwave Systems FLS614N4SHEC03	4 mm	14 mm	Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	4	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Female Sockets	12
McGill Microwave Systems FLS614N19PHEC03			Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	19	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Male Pins	20	19	14 S
McGill Microwave Systems FLS614N8SHEC03	8 mm	14 mm	Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	8	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Female Sockets	16 S
McGill Microwave Systems FLS614N4PHEC03	4 mm	14 mm	Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	4	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Male Pins	12
McGill Microwave Systems FLS614N2SHEC03	4 mm	14 mm	Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	4	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Female Sockets	12 16

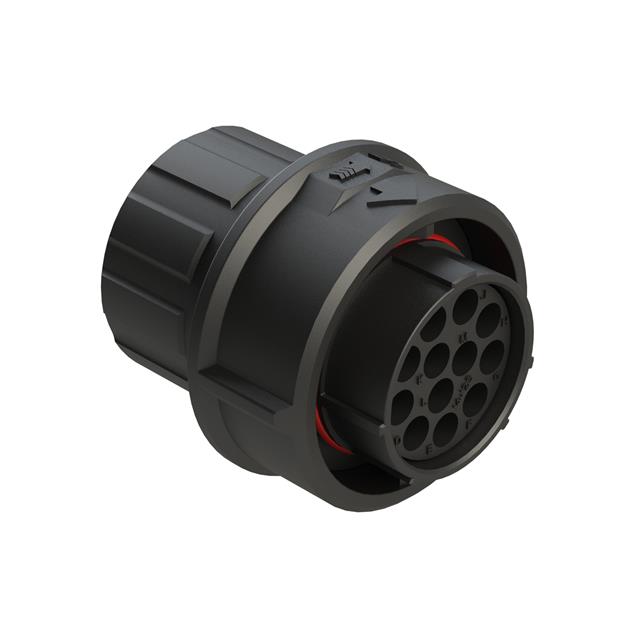

McGill Microwave Systems FLS614N12SHEC03	12 mm	14 mm	Plastic	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	Thermoplastic	Unshielded	Black	Crimp	N (Normal)	Circular	12	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Plug Housing	Free Hanging (In-Line)	Bayonet Lock	For Female Sockets	16 S
