644971 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

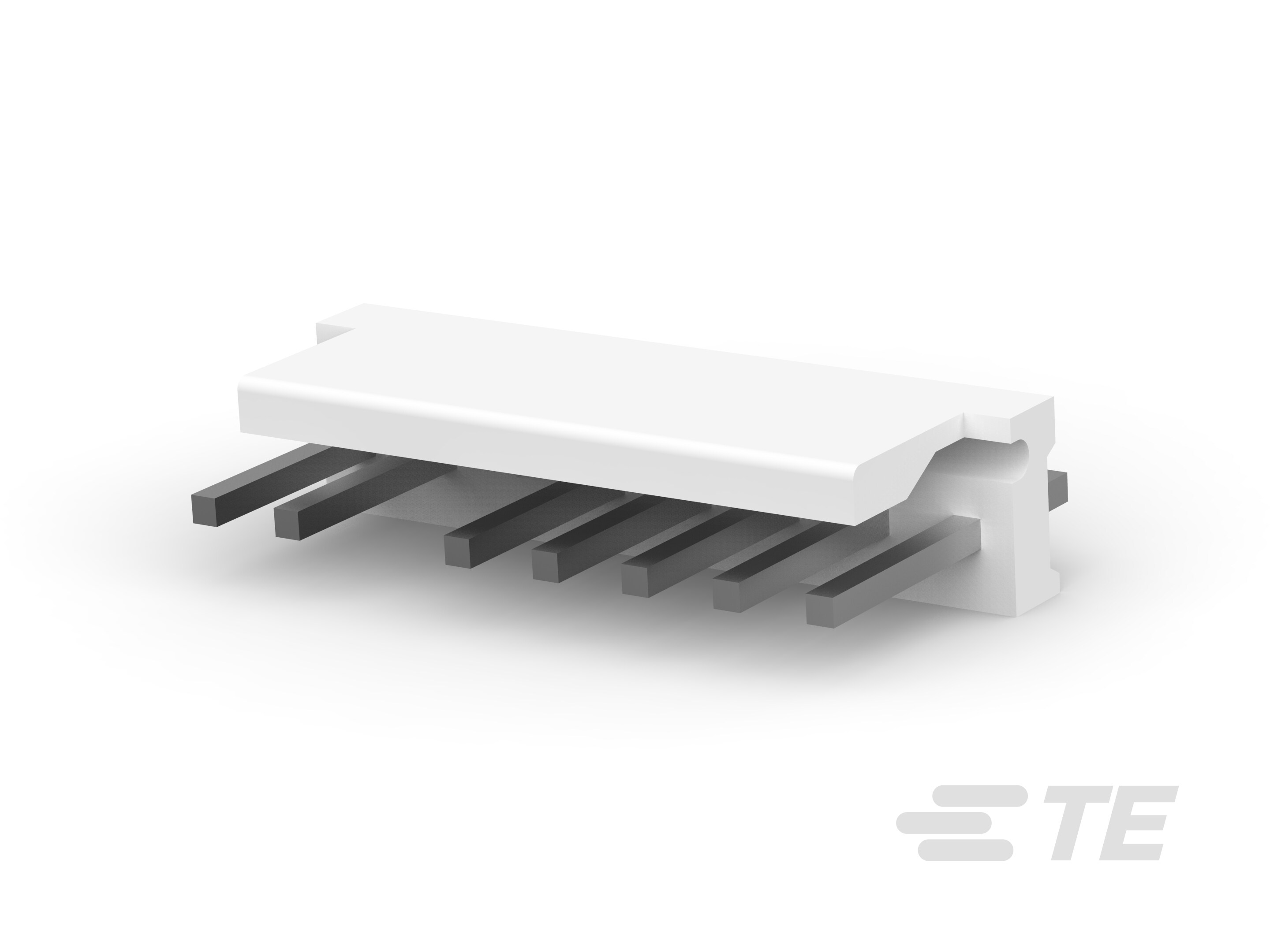

08P MTA156 HDR ASSY W/O#6 F/L
| Part | Overall Contact Length | Connector Type | Insulation Height | Fastening Type | Insulation Color | Current Rating | Current Rating | Pitch - Mating | Shrouding | Contact Finish - Post | Contact Type | Voltage Rating | Number of Rows | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Material | Contact Shape | Number of Positions | Contact Length - Post | Contact Finish - Mating | Number of Positions Loaded | Mounting Type | Style | Contact Material | Contact Length - Mating | Material Flammability Rating | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.65 in | Header | 0.425 in | Friction Lock | Natural | 0 A | Varies by Wire Gauge | 0.156 in | Shrouded - 1 Wall | Tin | Male Pin | 600 V | 1 | -55 °C | 105 °C | Glass Filled Thermoplastic | Square | 8 | 0.125 in | Tin | 7 | Through Hole | Board Cable/Wire | Copper Alloy | 0.4 in | UL94 V-0 | Solder | General Purpose Industrial |
