7016 Series

Catalog

CBL ASSY SMPM-2.4MM JACK-PLG 12"

Part	Features	2nd Contact Gender	1st Connector	Operating Temperature (Min)	Operating Temperature (Max)	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	1st Connector Mounting Type	Overall Impedance	2nd Connector Diameter	2nd Connector	Frequency - Max	Length	Color	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector Size

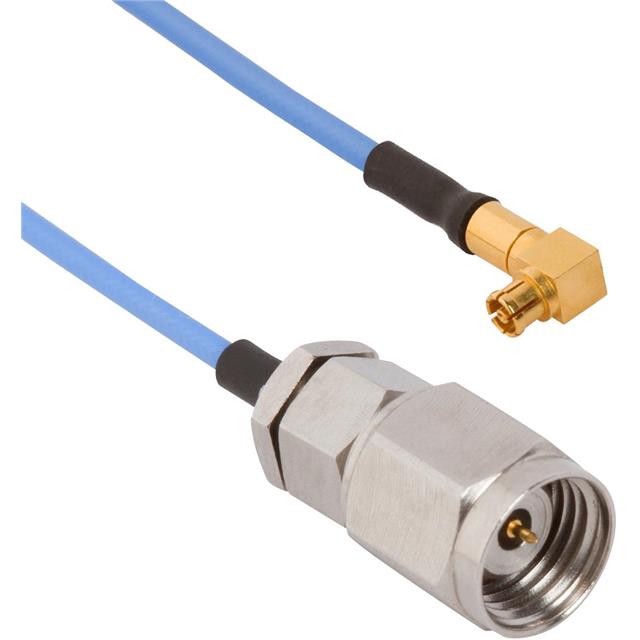

McGill Microwave Systems 7016-0065	Shielded	Male	Right Angle SMPM Jack	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	12 in	Blue	Female	SMPM to 2.4mm	Free Hanging (In-Line)

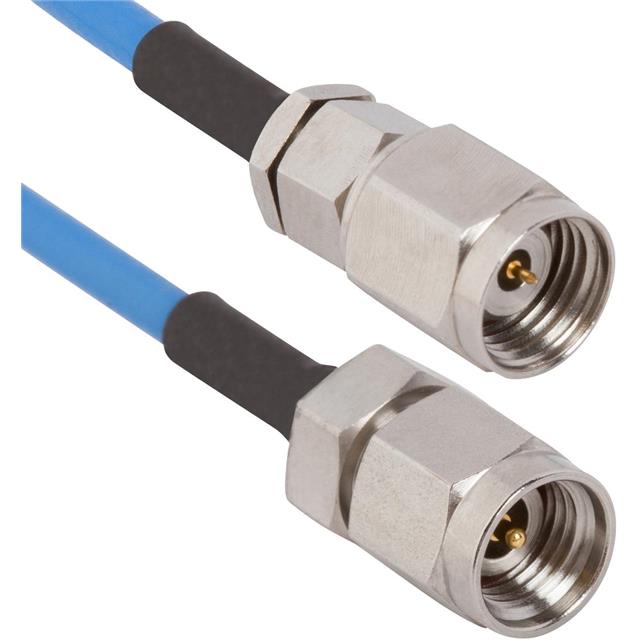

McGill Microwave Systems 7016-0062	Shielded	Male	Plug	-65 °C	165 °C	405	TFlex			Free Hanging (In-Line)	50 Ohms	2.92 mm	Plug	40 Gbps	0.5 ft	Blue	Male	2.4mm to 2.92mm	Free Hanging (In-Line)	2.4 mm

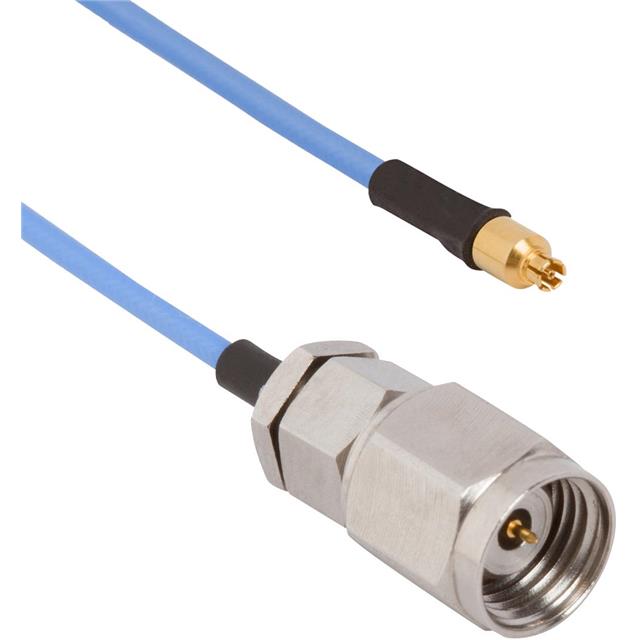

McGill Microwave Systems 7016-0074	Shielded	Male	SMPS Jack	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	50 GHz	0.5 ft	Blue	Female	SMPS to 2.4mm	Free Hanging (In-Line)
McGill Microwave Systems 7016-0068	Shielded	Male	SMPM Jack	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	0.5 ft	Blue	Female	SMPM to 2.4mm	Free Hanging (In-Line)

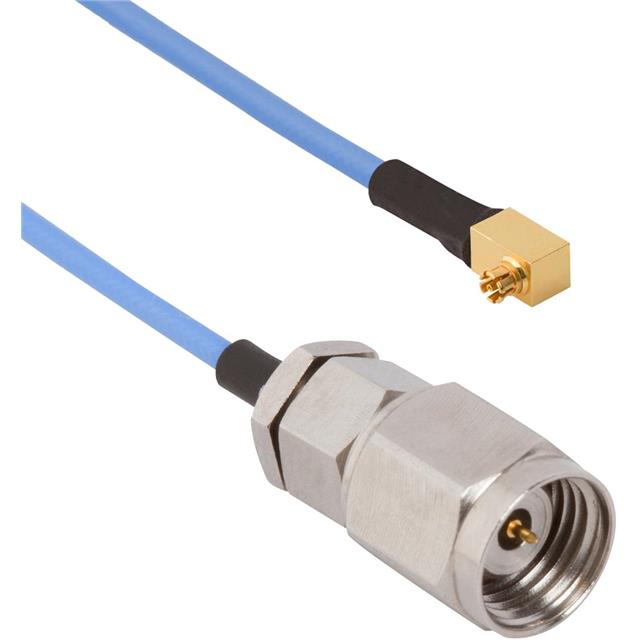

McGill Microwave Systems 7016-0073	Shielded	Male	Right Angle SMPS Jack	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	12 in	Blue	Female	SMPS to 2.4mm	Free Hanging (In-Line)

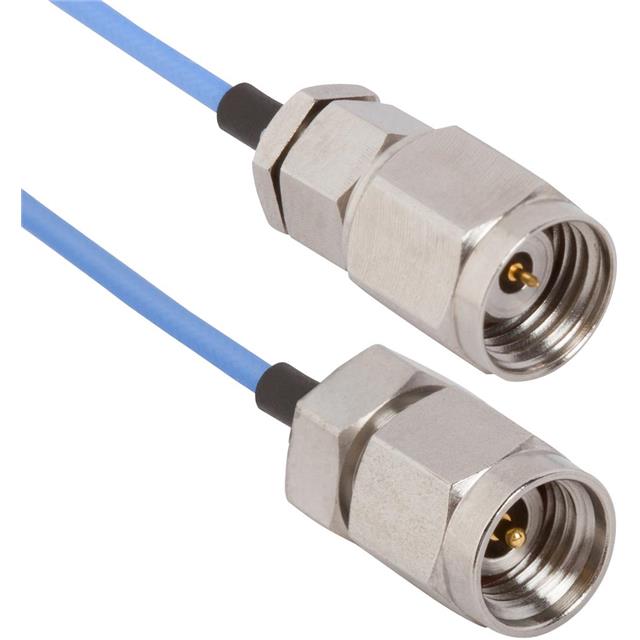

McGill Microwave Systems 7016-0061	Shielded	Male	Plug	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.92 mm	Plug	40 Gbps	12 in	Blue	Male	2.4mm to 2.92mm	Free Hanging (In-Line)	2.4 mm

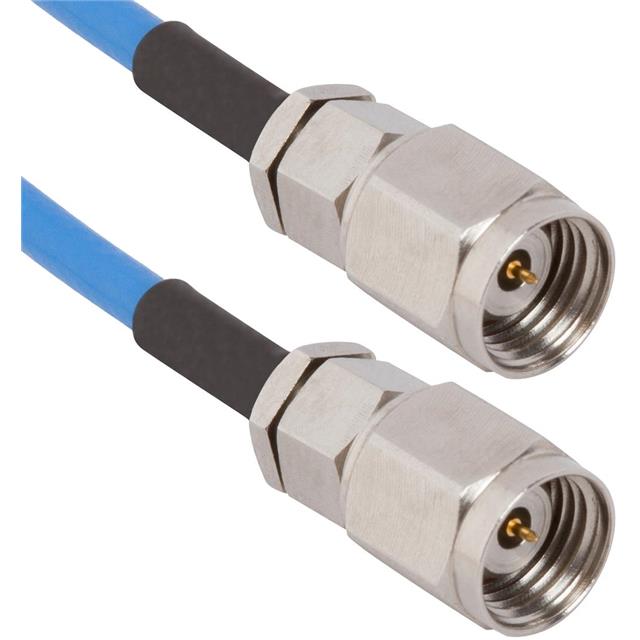

McGill Microwave Systems 7016-0059	Shielded	Male	Plug	-65 °C	165 °C	405	TFlex			Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	50 GHz	12 in	Blue	Male	2.4mm to 2.4mm	Free Hanging (In-Line)	2.4 mm
McGill Microwave Systems 7016-0064	Shielded	Male	Right Angle SMPM Jack	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	0.5 ft	Blue	Female	SMPM to 2.4mm	Free Hanging (In-Line)
McGill Microwave Systems 7016-0071	Shielded	Male	SMPM Jack	-65 °C	165 °C	405	TFlex			Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	12 in	Blue	Female	SMPM to 2.4mm	Free Hanging (In-Line)

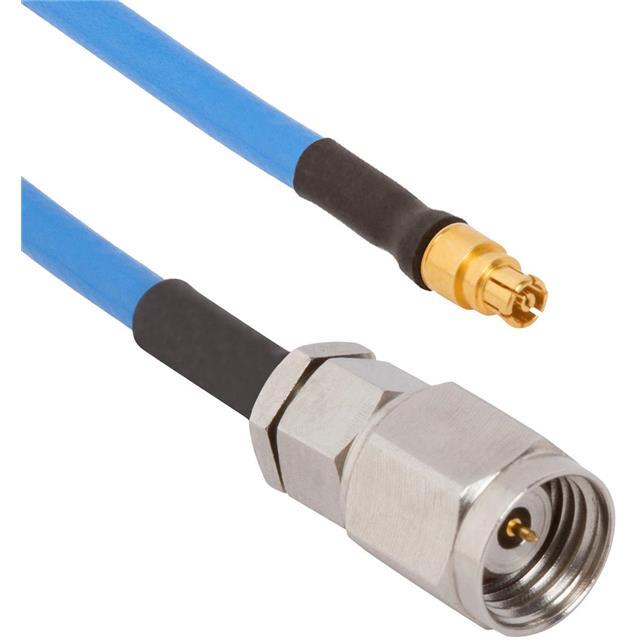

McGill Microwave Systems 7016-0070	Shielded	Male	SMPM Jack	-65 °C	165 °C	405	TFlex			Free Hanging (In-Line)	50 Ohms	2.4 mm	Plug	40 Gbps	0.5 ft	Blue	Female	SMPM to 2.4mm	Free Hanging (In-Line)
