XQEAPA Series

Catalog

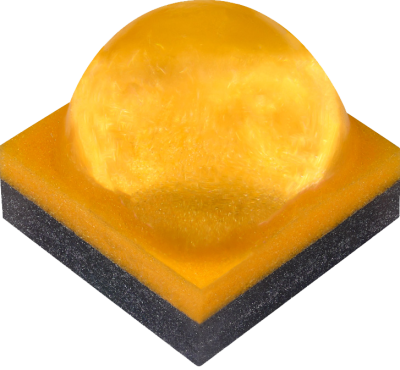

LED SINGLE CHIP AMBER 1000MA 2-PIN T/R

Part	Temperature - Test	Size / Dimension Length	Size / Dimension Width	Package Name	Viewing Angle	Current - Max	Voltage - Forward (Vf) (Typ)	Mounting Type	Height - Seated (Max)	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Luminous Flux	Lumens/Watt	Current - Test	Package Diameter	Package / Case	Color	Thermal Resistance of Package
CreeLED, Inc. XQEAPA-00-0000-000000A01	25 °C	0.063 in	0.063 in	0606	120 °	1.5 A	2.9 V	Surface Mount	0.068 in	94 lm	87 lm	91 lm	89 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-02-0000-000000801	25 °C	0.063 in	0.063 in	0606 SMD	120 °	1 A	3.1 V	Surface Mount	0.068 in	81 lm	74 lm	77 lm	71 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-00-0000-000000701	25 °C	0.063 in	0.063 in	0606 SMD	115 °	1 A	3.1 V	Surface Mount	0.071 in	74 lm	67 lm	71 lm	65 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber	8 °C/W
CreeLED, Inc. XQEAPA-H0-0000-000000901	25 °C	0.063 in	0.063 in	0606	120 °	1.5 A	2.9 V	Surface Mount	0.035 in	87 lm	81 lm	84 lm	83 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-00-0000-000000A01	25 °C	0.063 in	0.063 in	0606	120 °	1.5 A	2.9 V	Surface Mount	0.068 in	94 lm	87 lm	91 lm	89 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-00-0000-000000701	25 °C	0.063 in	0.063 in	0606 SMD	115 °	1 A	3.1 V	Surface Mount	0.071 in	74 lm	67 lm	71 lm	65 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-H0-0000-000000901	25 °C	0.063 in	0.063 in	0606	120 °	1.5 A	2.9 V	Surface Mount	0.035 in	87 lm	81 lm	84 lm	83 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
CreeLED, Inc. XQEAPA-00-0000-000000901	25 °C	0.063 in	0.063 in	0606 SMD	115 °	1 A	3.1 V	Surface Mount	0.071 in	87 lm	81 lm	84 lm	77 lm/W	350 mA	1616 mm	0606 (1616 Metric)	Amber
