AC7F Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

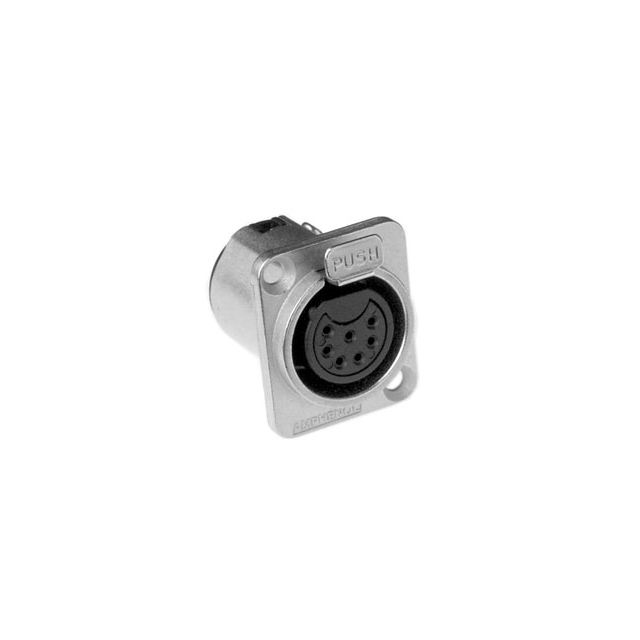

7 POLE XLR FEMALE CHASSIS MOUNT, D TYPE, MACHINED CONTACTS, SOLDER BUCKET, BLACK FINISH, BULK PACKAGING /BOX ROHS COMPLIANT: YES
| Part | Current Rating | Shell Size - Insert | Mounting Type | Shielding | Connector Type | Shell Finish | Shell Material | Fastening Type | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Orientation | Contact Material | Contact Finish - Mating | Ingress Protection | Material Flammability Rating | Applications | Insert Material | Mounting Feature | Primary Material | Number of Positions | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 5 A | XLR | Panel Mount | Unshielded | Female Sockets Plug | Black | Zinc Die Cast | Latch Lock | Solder Cup | -25 °C | 75 °C | Keyed | Brass | Gold | IP40 | UL94 V-0 | Audio | Glass Filled Nylon 6/6 PA66 Polyamide | Flange | Metal | 7 | Black | |
 McGill Microwave Systems | 5 A | XLR | Panel Mount | Shielded | Female Sockets Plug | Nickel | Zinc Die Cast | Latch Lock | Solder Cup | -25 °C | 75 °C | Keyed | Brass | Gold | IP40 | UL94 V-0 | Audio | Flange | Metal | 7 | Silver | Ground |
