ADN4650 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

5 KV RMS, 600 MBPS DUAL TX OR RX CHANNEL LVDS ISOLATOR

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Data Rate	Mounting Type	Rise / Fall Time (Typ)	Rise / Fall Time (Max)	Package Name	Package Length	Package Width	Voltage - Isolation	Number of Channels	Isolated Power	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Propagation Delay tpLH (Max)	Propagation Delay tpHL (Max)	Type	Channel Type	Common Mode Transient Immunity (Min)	Inputs - Side 2	Inputs - Side 1	Supplied Contents	Primary Attributes	Function	Utilized IC / Part	Contents	Secondary Attributes
Analog Devices Inc./Maxim Integrated ADN4650BRWZ	2.625 V	2.375 V	600 Mbps	Surface Mount	0.35 ns	0.35 ns	20-SOIC	0.295 in	7.5 mm	5000 Vrms	2	No	125 °C	-40 °C	Magnetic Coupling	4.5 ns	4.5 ns	LVDS	Unidirectional	25 kV/µs	0	2
Analog Devices Inc./Maxim Integrated ADN4650BRWZ-RL7	2.625 V	2.375 V	600 Mbps	Surface Mount	0.35 ns	0.35 ns	20-SOIC	0.295 in	7.5 mm	5000 Vrms	2	No	125 °C	-40 °C	Magnetic Coupling	4.5 ns	4.5 ns	LVDS	Unidirectional	25 kV/µs	0	2
Analog Devices Inc./Maxim Integrated EVAL-ADN4650EBZ																		Interface					Board(s)	2-Channel (Dual)	Digital Isolator	ADN4650	Board
Analog Devices Inc./Maxim Integrated ADN4650BRSZ	2.625 V	2.375 V	600 Mbps	Surface Mount	0.35 ns	0.35 ns	20-SSOP	0.209 in	5.3 mm	3750 VDC	2	No	125 °C	-40 °C	Magnetic Coupling	4.5 ns	4.5 ns	LVDS	Unidirectional	25 kV/µs	0	2

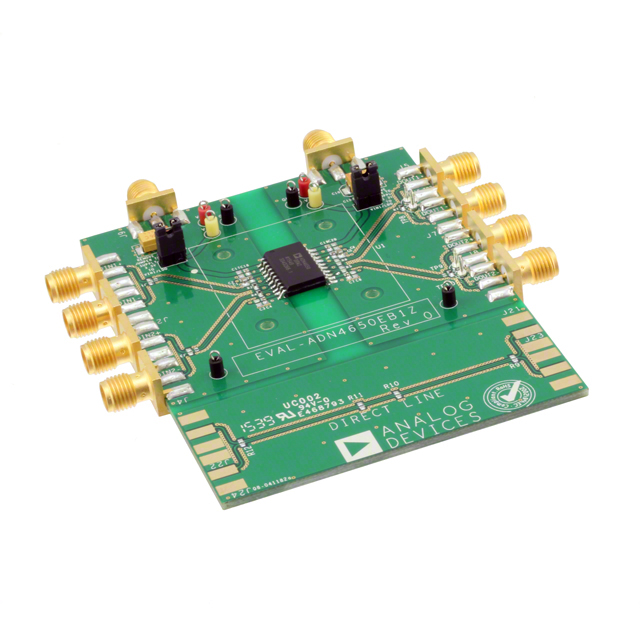

Analog Devices Inc./Maxim Integrated EVAL-ADN4650EB1Z																		Interface					Board(s)	2-Channel (Dual)	Digital Isolator	ADN4650	Board	SMA Connectors
Analog Devices Inc./Maxim Integrated ADN4650BRSZ-RL7	2.625 V	2.375 V	600 Mbps	Surface Mount	0.35 ns	0.35 ns	20-SSOP	0.209 in	5.3 mm	3750 VDC	2	No	125 °C	-40 °C	Magnetic Coupling	4.5 ns	4.5 ns	LVDS	Unidirectional	25 kV/µs	0	2
