17-1501 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

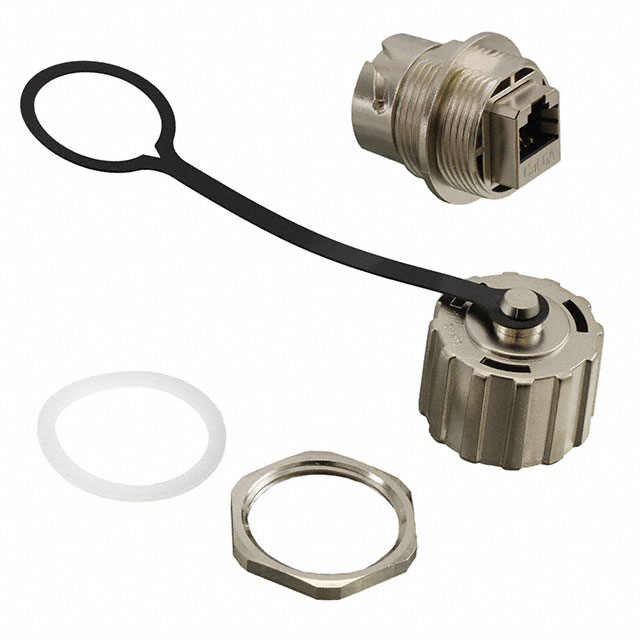

MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45-IP67 CAT.5E INLNECUP PLAS METSHL
| Part | Contact Finish | Housing Material | Contact Material | Contact Finish Thickness | Operating Temperature (Min) | Operating Temperature (Max) | Shell Material | Finish | Mounting Type | Convert To (Adapter End) | Convert From (Adapter End) | Type | Ingress Protection Description | Ingress Protection IP Rating | Shielding | Ratings | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Glass Filled PBT Polybutylene Terephthalate | Phosphor Bronze | 50 µin | -40 °C | 85 °C | Copper Alloy | Nickel Plated | Bulkhead Panel Mount | 8p8c (RJ45) Jack | 8p8c (RJ45) Jack | Coupler | Dust Tight Waterproof | IP67 | Shielded | Cat6a | Circular Bayonet Coupling | Front Side Nut |
 McGill Microwave Systems | Gold | Glass Filled PBT Polybutylene Terephthalate | Phosphor Bronze | 50 µin | -40 °C | 85 °C | Copper Alloy | Nickel Plated | Bulkhead Panel Mount | 8p8c (RJ45) Jack | 8p8c (RJ45) Jack | Coupler | Dust Tight Waterproof | IP67 | Shielded | Cat6a | Cap (Cover) Circular Threaded Coupling Industrial Environments | Front Side Nut |
 McGill Microwave Systems | Gold | Glass Filled PBT Polybutylene Terephthalate | Phosphor Bronze | 50 µin | -40 °C | 85 °C | Copper Alloy | Nickel Plated | Bulkhead Panel Mount | 8p8c (RJ45) Jack | 8p8c (RJ45) Jack | Coupler | Dust Tight Waterproof | IP67 | Shielded | Cat6a | Circular Bayonet Coupling | Front Side Nut |
McGill Microwave Systems | Gold | Polyester | Phosphor Bronze | 50 µin | -40 °C | 85 °C | Copper Alloy | Nickel Plated | Bulkhead Panel Mount | 8p8c (RJ45) Jack | 8p8c (RJ45) Jack | Coupler | Dust Tight Waterproof | IP67 | Shielded | Cat6a | Circular Bayonet Coupling | Front Side Nut |
