CSSV Series

Catalog

CURRENT SENSOR, 0.5%, -1.5KA TO 1.5KA, 6 TO 18VDC, 500K BAUD RATE, 3C6 CAN ID, CSSV1500 SERIES

Part	Current - Supply (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Frequency	Minimum Frequency	Frequency (Max)	Frequency (Min)	Maximum Frequency	Output	Current - Sensing	Package / Case	Polarization	Mounting Type	Sensor Type	Accuracy	For Measuring	Number of Channels	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)

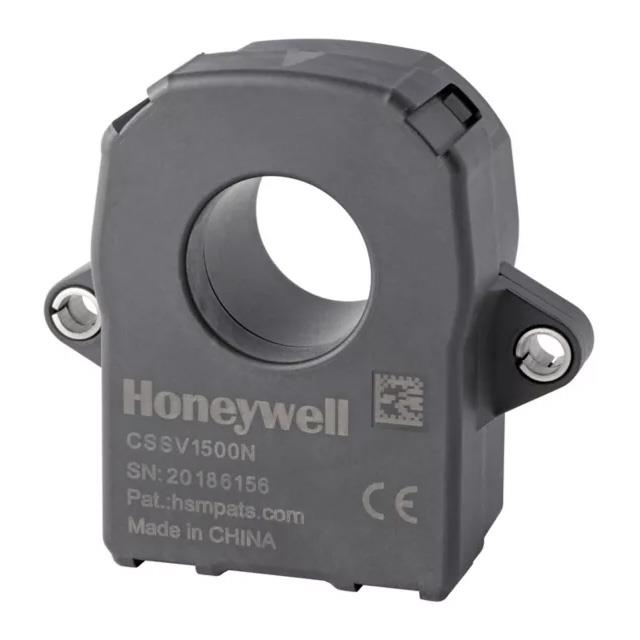

Honeywell Sensing and Productivity Solutions CSSV1500N-156	200 mA	-40 °C	85 °C	DC	DC	60 Hz	50 Hz	60 Hz	CAN Bus	1500 A	Module Single Pass Through	Bidirectional	Chassis Mount	Current Sensor	0.5 % RH	AC DC	1	18 V	6 V
Honeywell Sensing and Productivity Solutions CSSV1500N-155R	200 mA	-40 °C	85 °C	DC	DC	60 Hz	50 Hz	60 Hz	CAN Bus	1500 A	Module Single Pass Through	Bidirectional	Chassis Mount	Current Sensor	0.5 % RH	AC DC	1	18 V	6 V
