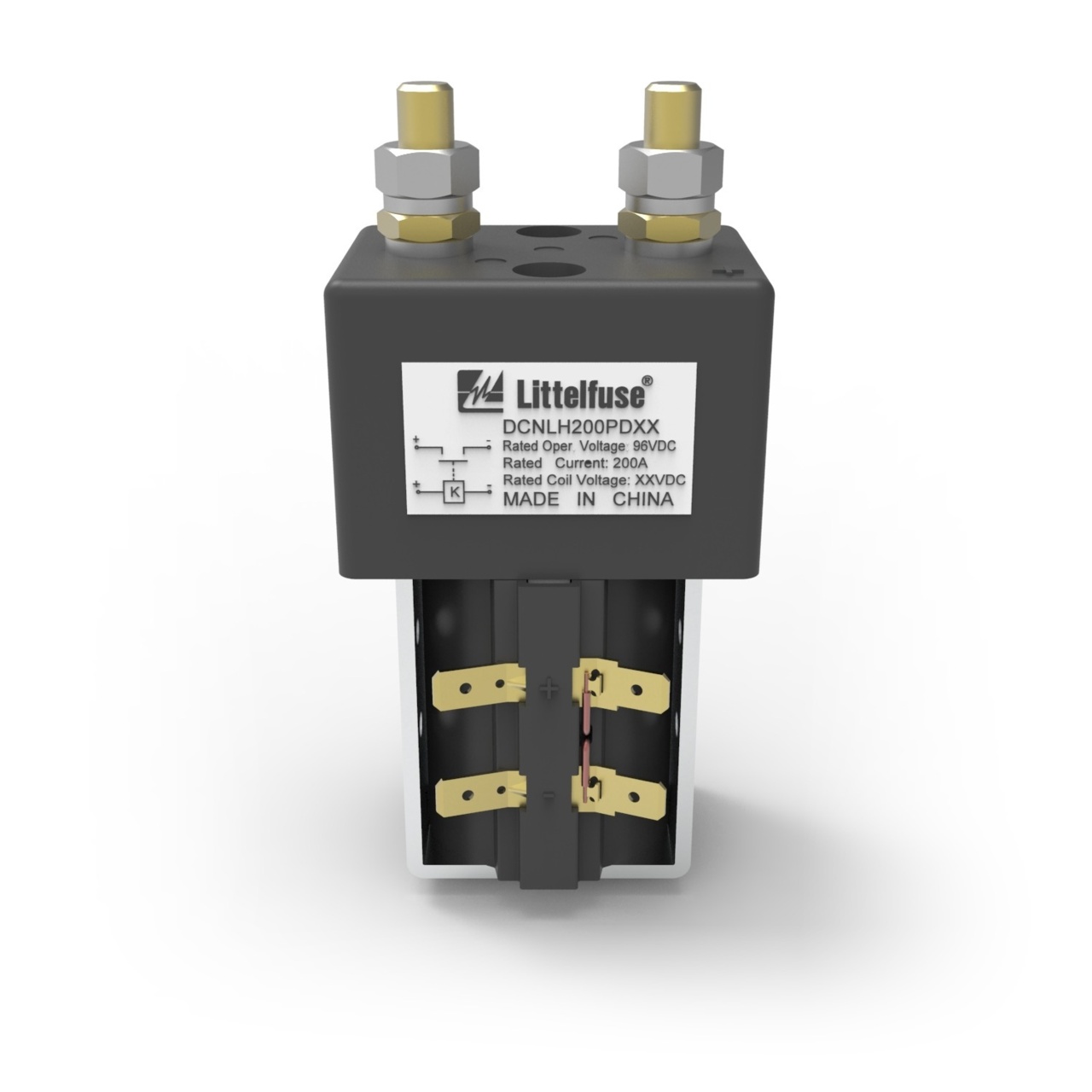

DCNLH200PD12 Series

DCNLH 200A 96V P 12Vcoil

Catalog

DCNLH 200A 96V P 12Vcoil

Part	Mounting Type	Form A Count	Contact Form	Quick Connect Size (0.250")	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)	Must Operate Voltage	Coil Voltage	Contact Rating (Current)
LITTELFUSE DCNLH200PD12	Chassis Mount	1	SPST-NO	0.25 in	Quick Connect Screw Terminal	-40 °C	85 °C	110 VDC	8.4 VAC	12 VAC	200 A

Catalog

DCNLH 200A 96V P 12Vcoil

Description

The DCNLH magnetically latching DC Contactor Relay is ideal for high-current electric control systems of communication power supplies, forklifts, uninterruptible power supplies (UPS), machinery, and more.This model of the DCNLH magnetic latching, bistable relay (DCNLH200PD12) features a 200A continuous current rating, a 12V coil, and polarized contacts rated for 96V (typical) and 110V (max).
