2466287 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

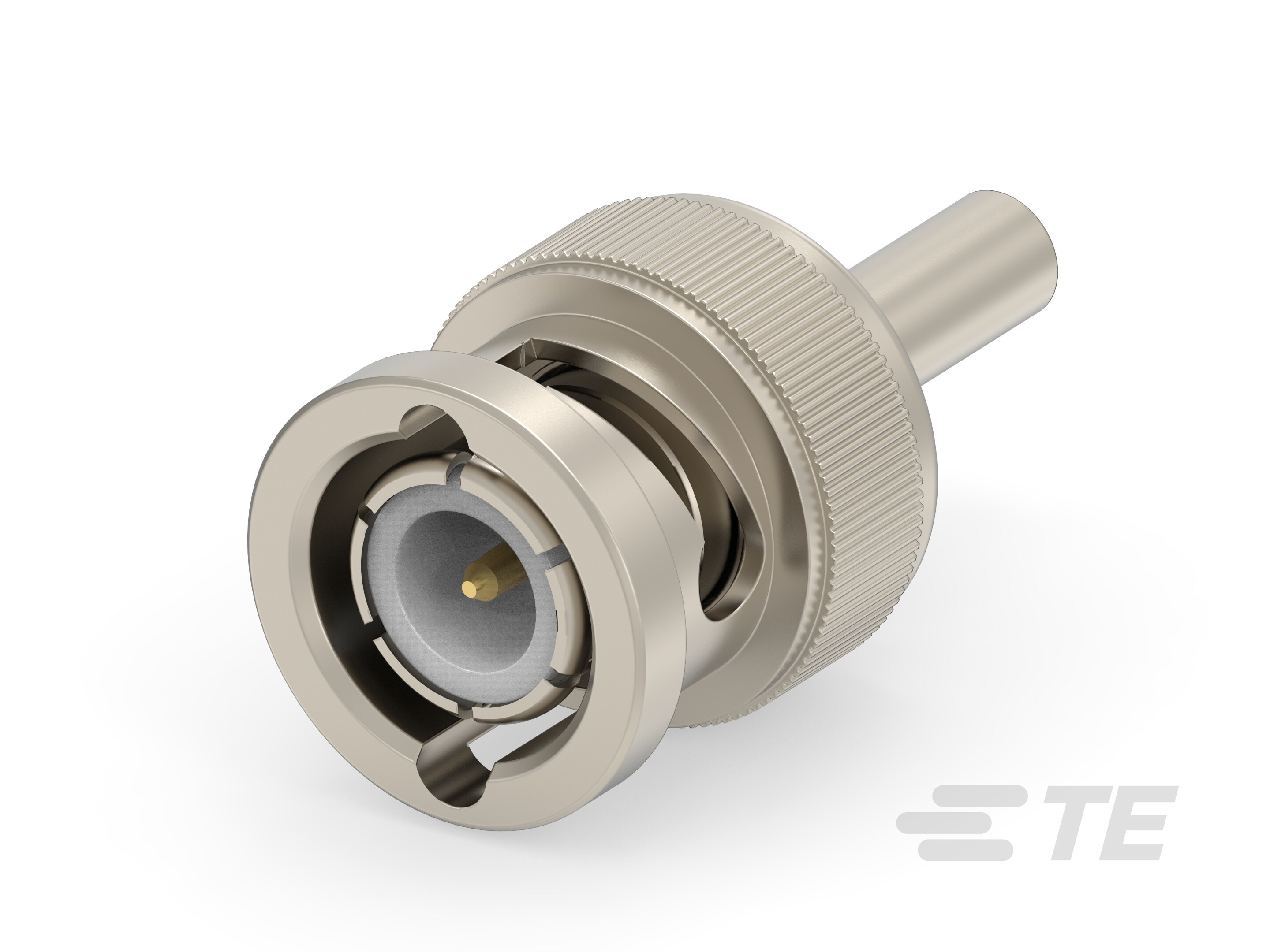

BNC M STR CRIMP RG174 188 316 4GHZ 50OHM
| Part | Impedance | Frequency - Max | Contact Termination | Cable Group | Shield Termination | Connector Style | Connector Type | Housing Color | Number of Ports | Fastening Type | Mounting Type | Center Contact Material | Body Material | Body Finish | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Includes Total Count | Includes | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 50 Ohm | 4 GHz | Crimp | 188 316 RG-174 | Crimp | BNC | Male Pin Plug | Silver | 1 | Bayonet Lock | Free Hanging (In-Line) | Phosphor Bronze | Brass | Nickel | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Gold | 3 pcs | Connector Contact Ferrule | 500 cycles |
