Power Thyristor Discretes-Others i4-Pac
Description
AI
The Standard SCR series offers thyristors in various packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Thyristor Discretes-Others i4-Pac
Power Thyristor Discretes-Others i4-Pac
| Part | Current - Gate Trigger (Igt) (Max) | Voltage - Off State | Operating Temperature (Min) | Operating Temperature (Max) | Current - On State (Max) | Structure | Number of SCRs | Mounting Type | Package / Case | Current - On State (It (RMS)) (Max) | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Current - Hold (Ih) (Max) | Voltage - Gate Trigger (Vgt) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

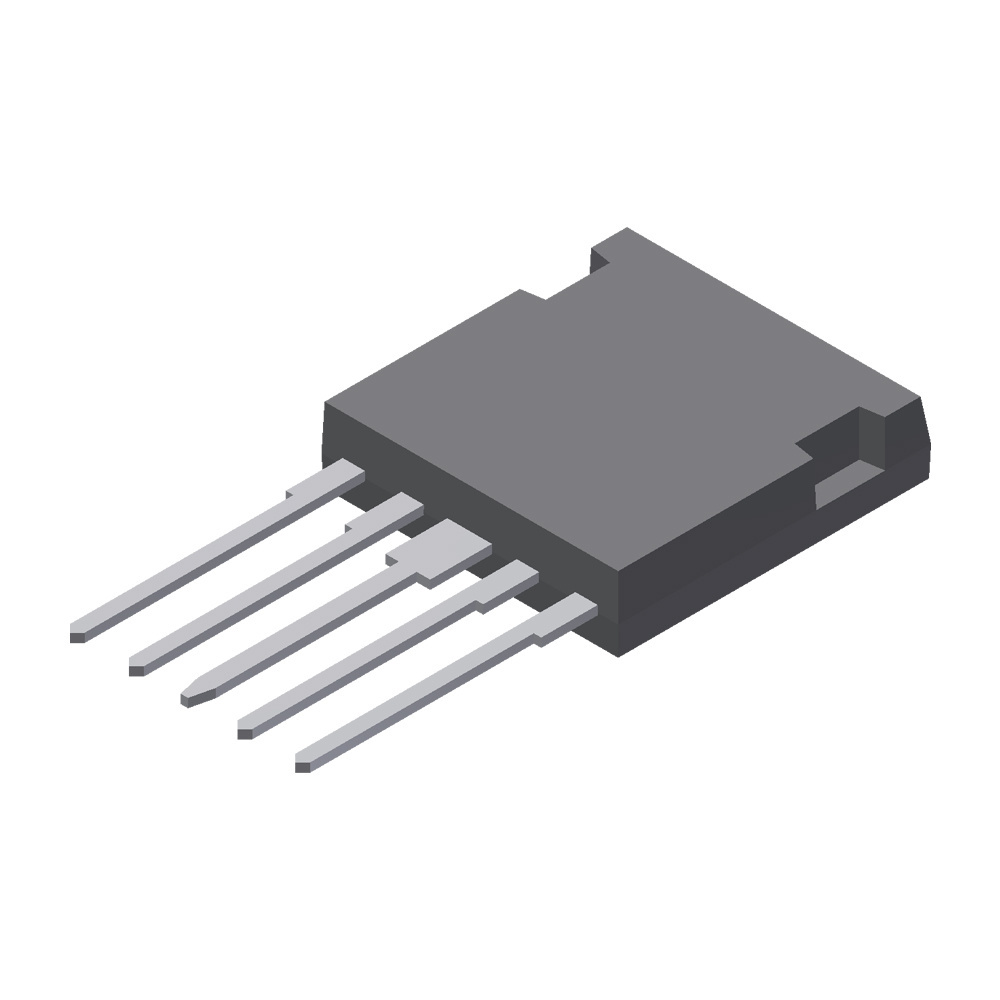

LITTELFUSE | 80 mA | 1.6 kV | -40 °C | 150 °C | 50 A | Series Connection - All SCRs | 2 count | Through Hole | i4-Pac™-5 | 79 A | Itsm | 50Hz 60Hz | 720 A 780 A | 100 mA | 1.4 V |
