ADG1212 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

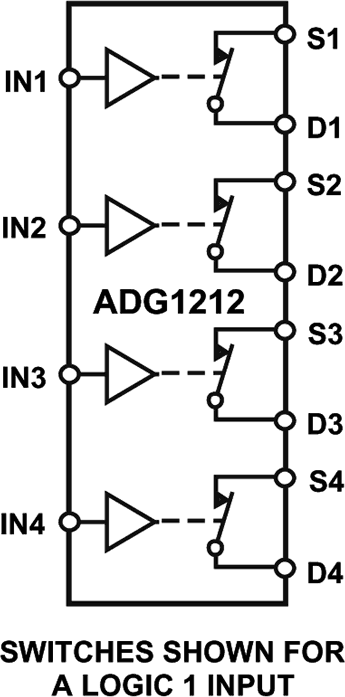

LOW CAPACITANCE, LOW CHARGE INJECTION, ±15 V/+12 V ICMOS QUAD SPST SWITCH

Part	Channel-to-Channel Matching (ΔRon) (Typ)	Switch Circuit Type	Switch Contact	Charge Injection	On-State Resistance (Max)	Package Name	Current - Leakage (Max)	Mounting Type	Number of Circuits	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Package Length	Package Width	Demultiplexer Outputs	Multiplexer Inputs	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply, Single (V+)	Crosstalk	-3db Bandwidth	Switch Time Ton (Max)	Switch Time Toff (Max)	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Package / Case
Analog Devices Inc./Maxim Integrated ADG1212SRUZ-EP-RL7	2.5 Ohm	SPST	NO	-0.3 pC	190 Ohm	16-TSSOP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	0.173 in	4.4 mm	1	1	15 V	-15 V	125 °C	-55 °C	12 V	-90 dB	1 GHz	80 ns	100 ns
Analog Devices Inc./Maxim Integrated ADG1212SRU-EP-RL7		SPST	NO	-0.3 pC	190 Ohm	16-TSSOP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	0.173 in	4.4 mm	1	1	15 V	-15 V	125 °C	-40 °C	12 V	-90 dB	1 GHz	80 ns	100 ns	2.5 Ohm
Analog Devices Inc./Maxim Integrated ADG1212YRUZ		SPST	NO	-0.3 pC	190 Ohm	16-TSSOP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	0.173 in	4.4 mm	1	1	16.5 V	-4.5 V	125 °C	-40 °C		-90 dB	1 GHz	130 ns	115 ns	2.5 Ohm	4.5 V	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1212YCPZ-500RL7		SPST	NO	-0.3 pC	190 Ohm	16-LFCSP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	3 mm	3 mm	1	1	16.5 V	-4.5 V	125 °C	-40 °C		-90 dB	1 GHz	130 ns	115 ns	2.5 Ohm	4.5 V	16.5 V	5 V	16-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1212YRUZ-REEL7		SPST	NO	-0.3 pC	190 Ohm	16-TSSOP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	0.173 in	4.4 mm	1	1	16.5 V	-4.5 V	125 °C	-40 °C		-90 dB	1 GHz	130 ns	115 ns	2.5 Ohm	4.5 V	16.5 V	5 V
Analog Devices Inc./Maxim Integrated ADG1212YCPZ-REEL7		SPST	NO	-0.3 pC	190 Ohm	16-LFCSP	100 pA	Surface Mount	4	1.2 pF	1.1 pF	3 mm	3 mm	1	1	16.5 V	-4.5 V	125 °C	-40 °C		-90 dB	1 GHz	130 ns	115 ns	2.5 Ohm	4.5 V	16.5 V	5 V	16-WFQFN Exposed Pad CSP
