ADM8699 Series

Microprocessor Supervisory Circuit with Watchdog Feature, 4.65V Threshold Voltage, Low Supply Current and Active Low Reset Output. Upgrade for ADM699

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Microprocessor Supervisory Circuit with Watchdog Feature, 4.65V Threshold Voltage, Low Supply Current and Active Low Reset Output. Upgrade for ADM699

Part	Package Length	Package Name	Package Width	Type	Mounting Type	Reset	Reset Timeout (Minimum)	Number of Voltages Monitored	Voltage - Threshold	Output	Operating Temperature (Max)	Operating Temperature (Min)
Analog Devices Inc./Maxim Integrated ADM8699ARWZ	0.295 in	16-SOIC	7.5 mm	Simple Reset/Power-On Reset	Surface Mount	Active High Active Low	140 ms	1	4.65 V	Push-Pull	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADM8699ARN-REEL	0.154 in	8-SOIC	3.9 mm	Simple Reset/Power-On Reset	Surface Mount	Active Low	140 ms	1	4.65 V	Push-Pull Totem Pole	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADM8699ANZ	0.3 in	8-DIP 8-PDIP	7.62 mm	Simple Reset/Power-On Reset	Through Hole	Active Low	140 ms	1	4.65 V	Push-Pull Totem Pole	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADM8699ARNZ-REEL	0.154 in	8-SOIC	3.9 mm	Simple Reset/Power-On Reset	Surface Mount	Active Low	140 ms	1	4.65 V	Push-Pull Totem Pole	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADM8699ARNZ	0.154 in	8-SOIC	3.9 mm	Simple Reset/Power-On Reset	Surface Mount	Active Low	140 ms	1	4.65 V	Push-Pull Totem Pole	85 °C	-40 °C

Catalog

Microprocessor Supervisory Circuit with Watchdog Feature, 4.65V Threshold Voltage, Low Supply Current and Active Low Reset Output. Upgrade for ADM699

Description

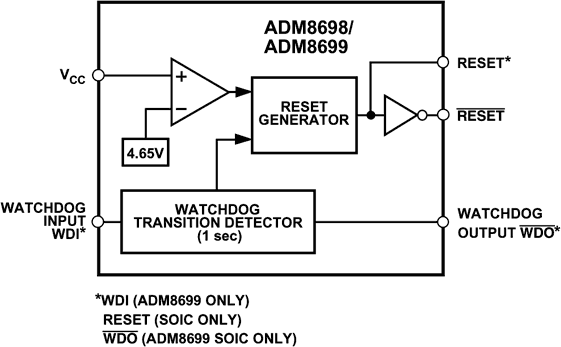

The ADM8698 / ADM8699 supervisory circuits provide power supply monitoring and watchdog timing for microprocessor systems.The ADM8698 monitors the 5 V VCC power supply and generates aRESETpulse during power up, power down and during low voltage "Brown Out" conditions. TheRESEToutput is guaranteed to be functional (logic low) with VCCas low as 1 V.The ADM8699 features an identical monitoring circuit as in the ADM8698, plus an additional watchdog timer input to monitor microprocessor activity. TheRESEToutput is forced low if the watchdog input is not toggled within the 1 second watchdog timeout period.Both parts are available in 8-pin plastic DIP/SOIC and 16-lead SOIC packages. The 16-lead SOIC contains additional outputsRESET(without inversion) and Watchdog OutputWDO(ADM8699 only).APPLICATIONSMicroprocessor SystemsComputersControllersIntelligent InstrumentsAutomotive SystemsCritical µP Power MonitoringADM8698 is obsolete
