CLVBA Series

Catalog

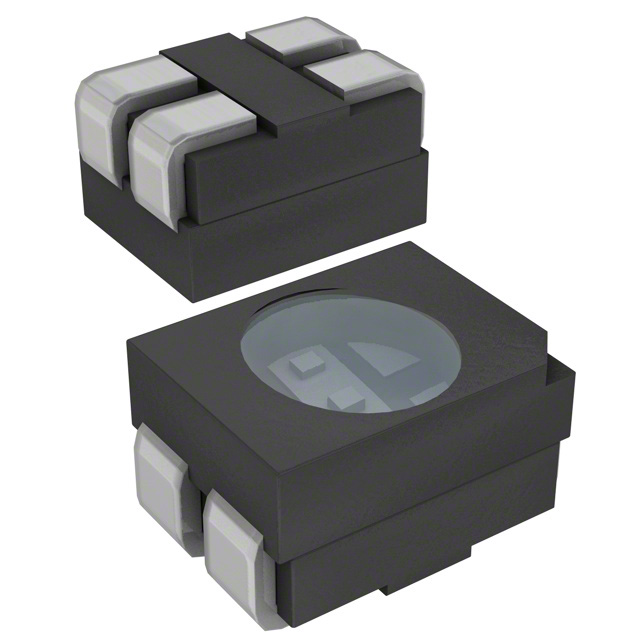

LED RGB 4PLCC SMD

Part	Current - Test Colors	Current - Test (Blue)	Current - Test (Red)	Current - Test (Green)	Configuration	Package / Case	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Red)	Millicandela Rating Colors	Millicandela Rating (Blue)	Millicandela Rating (Red)	Millicandela Rating (Green)	Wavelength - Dominant (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Blue)	Mounting Type	Package Name	Lens Style	Height (Max)	Color	Lens Transparency	Lens Color
CreeLED, Inc. CLVBA-FKA-CA1D181BB7D3D3	Blue Green Red	8 mA	8 mA	8 mA	Common Anode	4-LCC (J-Lead)	2.8 mm	3.2 mm	Blue Green Red	3 V	3 V	1.9 V	Blue Green Red	74 mcd	148 mcd	295 mcd	622 nm	Blue Green Red	530 nm	470 nm	Surface Mount	4-PLCC	Flat Top Round	2.1 mm	Blue (RGB) Green Red
CreeLED, Inc. CLVBA-FKA-CAEDH8BBB7A363	Blue Green Red	20 mA	20 mA	20 mA	Common Anode	4-PLCC	2.8 mm	3.2 mm	Blue Green Red	3 V	3 V	1.9 V	Blue Green Red	74 mcd	148 mcd	295 mcd	622 nm	Blue Green Red	530 nm	470 nm	Surface Mount	4-PLCC	Flat Top Round	2.1 mm	Blue (RGB) Green Red	Diffused	White
