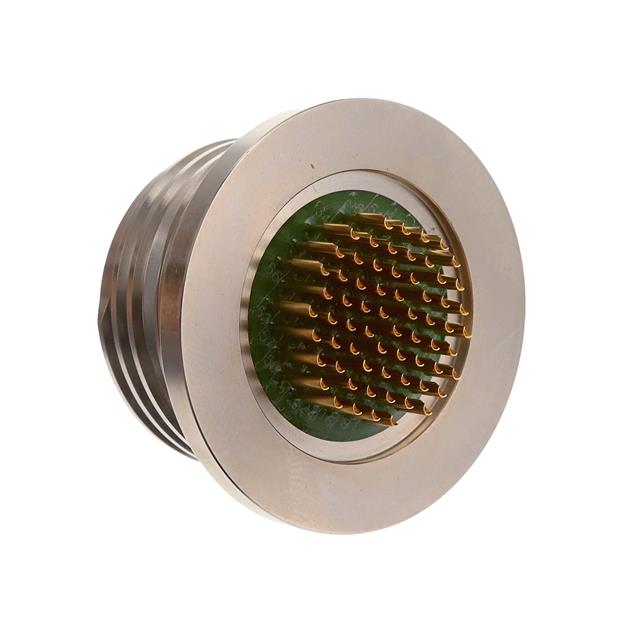

D38999/27NF Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
HERMETIC CIRCULAR MIL-SPEC CONNE
| Part | Qualification | Orientation | Grade | Shell Size (MIL) | Shell Finish | Number of Positions | Applications | Color | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Features | Fastening Type | Mounting Type | Contact Material | Termination | Connector Type | Voltage Rating (DC) | Voltage Rating (AC) | Shielding | Contact Finish Thickness - Mating | Primary Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | MIL-DTL-38999 Series III | N (Normal) | Military | F | Nickel | 66 | Aerospace Aviation Marine Military | Silver | 35 | 19 | 200 °C | -65 °C | Stainless Steel | Hermetically Sealed | Threaded | Panel Mount | Copper Alloy | Solder Cup | Male Pins Receptacle | 500 VDC | 400 VAC | Unshielded | 50 µin | Metal | Gold |
