MA1EAE Series

Catalog

CONN CIRCULAR PIN 17 POS RA CABLE MOUNT 17 TERMINAL 1 PORT

Part	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Mounting Type	Features	Housing Color	Orientation	Shell Finish	Material Flammability Rating	Number of Positions	Shielding	Shell Size - Insert	Contact Type	Type	Connector Type	Contact Size	Note	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Insert Material
McGill Microwave Systems MA1EAE1700	Threaded	Dust Tight Waterproof	IP67	Zinc Die Cast	Free Hanging (In-Line) Right Angle	Coupling Nut Rotatable	Silver	E	Nickel	UL94 V-0	17	Shielded	M23-17	Crimp	For Female Sockets or Male Pins	Plug Housing	1 mm	Contacts Not Included	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide

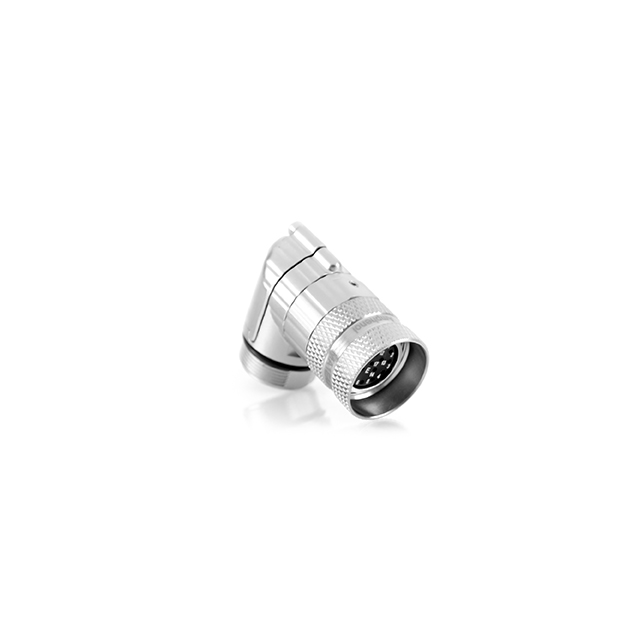

McGill Microwave Systems MA1EAE1900	Threaded	Dust Tight Waterproof	IP67	Zinc Die Cast	Free Hanging (In-Line) Right Angle	Coupling Nut Rotatable	Silver	E	Nickel	UL94 V-0	19	Shielded	M23-19	Crimp	For Female Sockets or Male Pins	Plug Housing	1 mm	Contacts Not Included	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide
McGill Microwave Systems MA1EAE1200	Threaded	Dust Tight Waterproof	IP67	Zinc Die Cast	Free Hanging (In-Line) Right Angle	Coupling Nut Rotatable	Silver	E	Nickel	UL94 V-0	12	Shielded	M23-12	Crimp	For Female Sockets or Male Pins	Plug Housing	1 mm	Contacts Not Included	-20 °C	130 °C	Circular	Nylon 6/6 PA66 Polyamide
