ADL5504 Series

Catalog

IC RF DETECT 450MHZ-6GHZ 6WLCSP

Part	RF Type	Package / Case	Current - Supply	Input Level (Min)	Input Level (Max)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Name	Package Length	Package Width	Mounting Type	Frequency (Max)	Frequency (Min)	Accuracy	Supplied Contents	For Use With/Related Products	Type	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated ADL5504ACBZ-P2	CDMA QPSK W-CDMA	6-UFBGA WLCSP	1.8 mA	-25 dB	15 dB	2.5 V	3.3 V	6-WLCSP	0.91 mm	1.39 mm	Surface Mount	6 GHz	450 MHz	0.25 dB

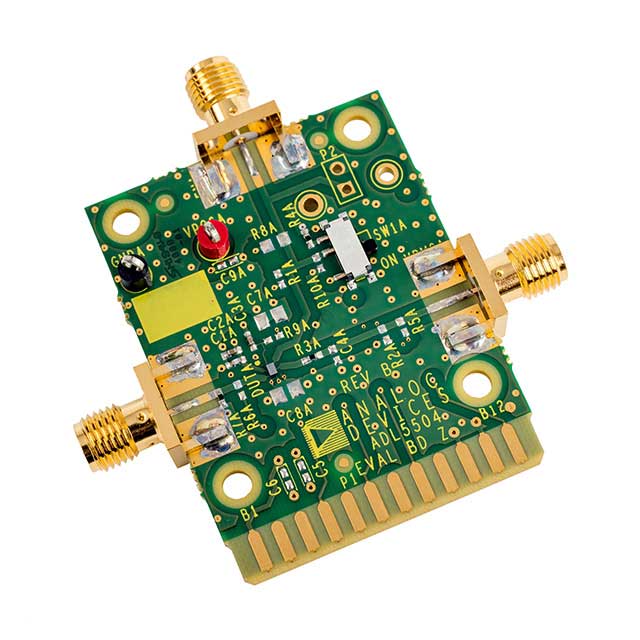

Analog Devices Inc./Maxim Integrated ADL5504-EVALZ												6 GHz	450 MHz		Board(s)	ADL5504	Power Detector	Board	ADL5504
Analog Devices Inc./Maxim Integrated ADL5504ACBZ-P7	CDMA QPSK W-CDMA	6-UFBGA WLCSP	1.8 mA	-25 dB	15 dB	2.5 V	3.3 V	6-WLCSP	0.91 mm	1.39 mm	Surface Mount	6 GHz	450 MHz	0.25 dB
