Power Thyristor Discretes-Others i4-Pac

Part	Package Name	Mounting Type	SCR Type	Package Leads	Voltage - Off State	Current - Gate Trigger (Igt) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - On State (Vtm) (Max)	Current - Off State (Max)	Current - Hold (Ih) (Max)	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge Type	Current - Non Rep. Surge (Itsm)	Current - On State (Max)	Current - On State (It (RMS)) (Max)

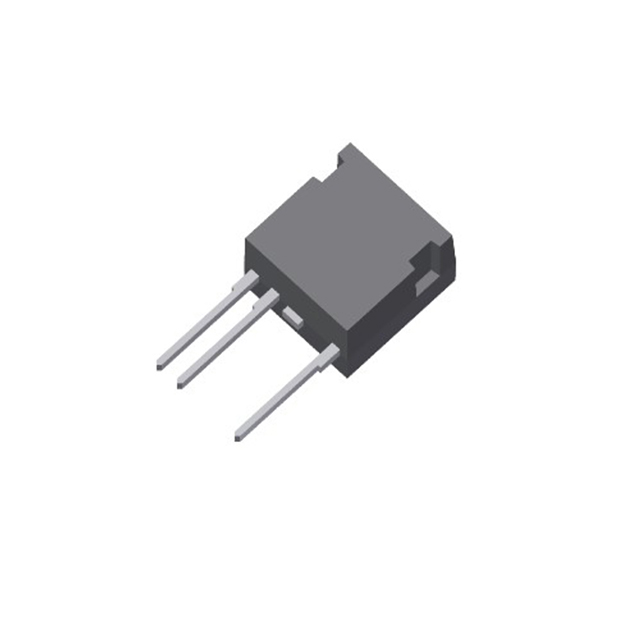

LITTELFUSE CS20-25MO1F	i4-Pac™-5 ISOPLUS i4-PAC™	Through Hole	Standard Recovery	3 Leads	2.5 kV
LITTELFUSE CS20-25MOT1-TUB	TO-268AA	Surface Mount	Standard Recovery		2.5 kV	250 mA	2.5 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	70 °C	-10 °C	3 V	50 µA	300 mA	50Hz 60Hz	Itsm	200 A
LITTELFUSE CS20-22MOF1	i4-Pac™-5 ISOPLUS i4-PAC™	Through Hole	Standard Recovery	3 Leads	2200 kV	250 mA	2.3 V		125 °C	-40 °C	1.5 V	50 µA	150 mA	50Hz 60Hz	Itsm	200 A	18 A
LITTELFUSE CS20-12IO1	TO-247AD	Through Hole	Standard Recovery		1200 kV	65 mA	1 V	TO-247-3	125 °C	-40 °C	2.1 V	2 mA	100 mA	50Hz 60Hz	Itsm	200 A 215 A	19 A	30 A
