C091 B Series

Catalog

CIRCULAR DIN CONNECTORS MALE R ANG CONN 6C GOLD 4-6MM

Part	Ingress Protection	Primary Material	Insert Material	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Shell Material	Number of Positions	Color	Shell Finish	Shell Size - Insert	Termination	Cable Opening (Min)	Cable Opening (Max)	Voltage Rating	Orientation	Mounting Type	Connector Type	Features	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Shielding	Type	Contact Shape	Note	Contact Type	Housing Color	Contact Size
McGill Microwave Systems T 3424 058	IP40	Metal	Thermoplastic	7 A	100 °C	-40 °C	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Zinc Die Cast	6	Black Silver	Nickel	M16-6	Solder Cup	0.157 in	0.236 in	250 V	Keyed	Free Hanging (In-Line) Right Angle	Male Pins Plug	Backshell Cable Clamp Coupling Nut Strain Relief	Gold	Bayonet Lock	UL94 V-0	Unshielded

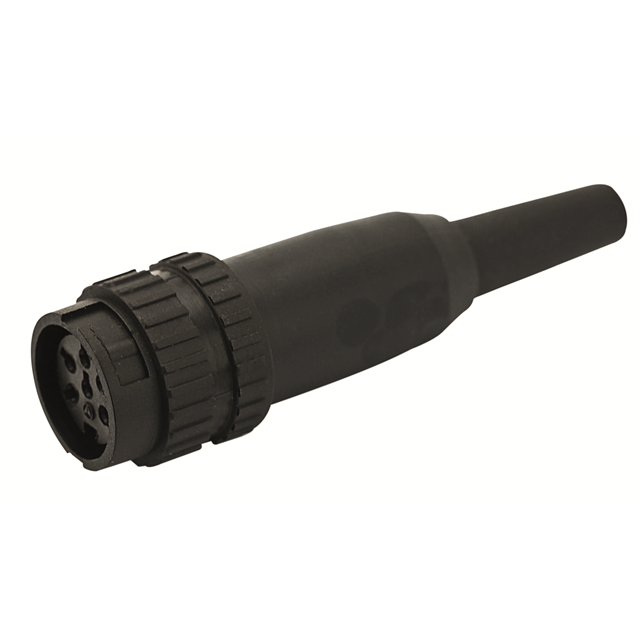

McGill Microwave Systems T 3438 951	IP40		Thermoplastic		100 °C	-40 °C		Thermoplastic	7			M16-7					Keyed	Free Hanging (In-Line)	Plug Housing	Backshell Cable Clamp Coupling Nut Strain Relief		Bayonet Lock	UL94 V-0	Unshielded	For Female Sockets	Circular	Contacts Not Included	Crimp	Black	1 mm

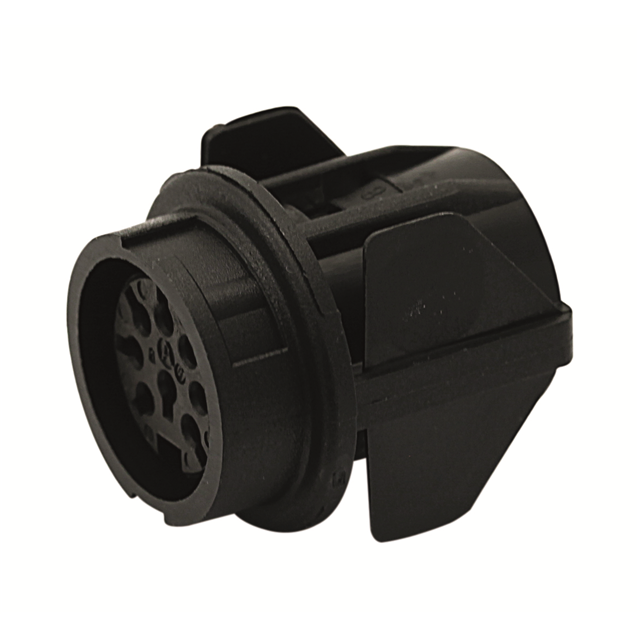

McGill Microwave Systems T 3397 518	IP40	Plastic	Thermoplastic	7 A	100 °C	-40 °C	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Plastic	5	Black		M16-5(S)	Solder Cup			250 V	Keyed	Panel Mount Snap-In	Female Sockets Receptacle	Stereo	Gold	Bayonet Lock	UL94 V-0	Unshielded
McGill Microwave Systems T 3525 501	IP40	Metal	Thermoplastic	7 A	100 °C	-40 °C	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Zinc Die Cast	8	Black	Nickel	M16-8	Solder Cup	0.157 in	0.236 in	250 V	Keyed	Free Hanging (In-Line)	Female Sockets Plug	Backshell Cable Clamp Coupling Nut Strain Relief	Silver	Bayonet Lock	UL94 V-0	Unshielded
McGill Microwave Systems T 3448 554	IP40		Thermoplastic		100 °C	-40 °C		Die Cast	7		Nickel	M16-7B					Keyed	Free Hanging (In-Line)	Plug Housing	Backshell Cable Clamp Coupling Nut		Bayonet Lock	UL94 V-0	Shielded	For Female Sockets	Circular	Contacts Not Included	Crimp	Black Silver	1.5 mm
McGill Microwave Systems T 3524 951	IP40							Thermoplastic	8			M16-8					Keyed	Free Hanging (In-Line)	Plug Housing	Backshell Cable Clamp Coupling Nut Strain Relief		Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Crimp	Black	1.5 mm
McGill Microwave Systems T 3528 504	IP40	Metal	Thermoplastic	7 A	100 °C	-40 °C	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Zinc Die Cast	8	Black	Nickel	M16-8	Solder Cup	0.157 in	0.236 in	250 V	Keyed	Free Hanging (In-Line)	Female Sockets Plug	Backshell Cable Clamp	Silver	Bayonet Lock	UL94 V-0	Unshielded
McGill Microwave Systems T 3378 991	IP40	Plastic	Thermoplastic	7 A	100 °C	-40 °C	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Plastic	5	Black		M16-5	Solder Cup	0.157 in	0.236 in	250 V	Keyed	Free Hanging (In-Line)	Female Sockets Plug	Backshell Cable Clamp Strain Relief	Silver	Bayonet Lock	UL94 V-0	Unshielded
