SF8711 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

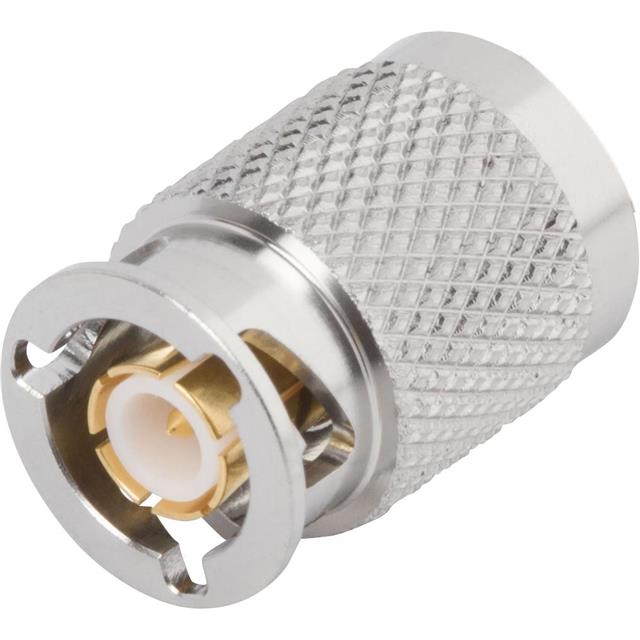

CONN ZMA PLUG STR 50OHM SOLDER
| Part | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Body Finish | Operating Temperature (Max) | Operating Temperature (Min) | Impedance | Cable Group Diameter (Default) | Cable Group | Number of Ports | Connector Type | Fastening Type | Housing Color | Mounting Type | Frequency - Max | Shield Termination | Center Contact Material | Features | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold Passivated | 125 °C | -55 °C | 50 Ohm | 0.085 in | RG-405 | 1 | Male Pin Plug | Bayonet Lock | Gold Silver | Free Hanging (In-Line) | 18 GHz | Solder | Beryllium Copper | Three Lug | ZMA | Solder |
McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold Passivated | 125 °C | -55 °C | 50 Ohm | 0.085 in | RG-405 | 1 | Male Pin Plug | Bayonet Lock | Gold Silver | Free Hanging (In-Line) | 18 GHz | Solder | Beryllium Copper | Three Lug | ZMA | Solder |
McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold Passivated | 125 °C | -55 °C | 50 Ohm | 0.085 in | RG-405 | 1 | Male Pin Plug | Bayonet Lock | Gold Silver | Free Hanging (In-Line) | 18 GHz | Solder | Beryllium Copper | Three Lug | ZMA | Solder |
McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 cycles | Gold Passivated | 125 °C | -55 °C | 50 Ohm | 0.085 in | RG-405 | 1 | Male Pin Plug | Bayonet Lock | Gold Silver | Free Hanging (In-Line) | 18 GHz | Solder | Beryllium Copper | Four Lug | ZMA | Solder |
