RP73D1J Series

Catalog

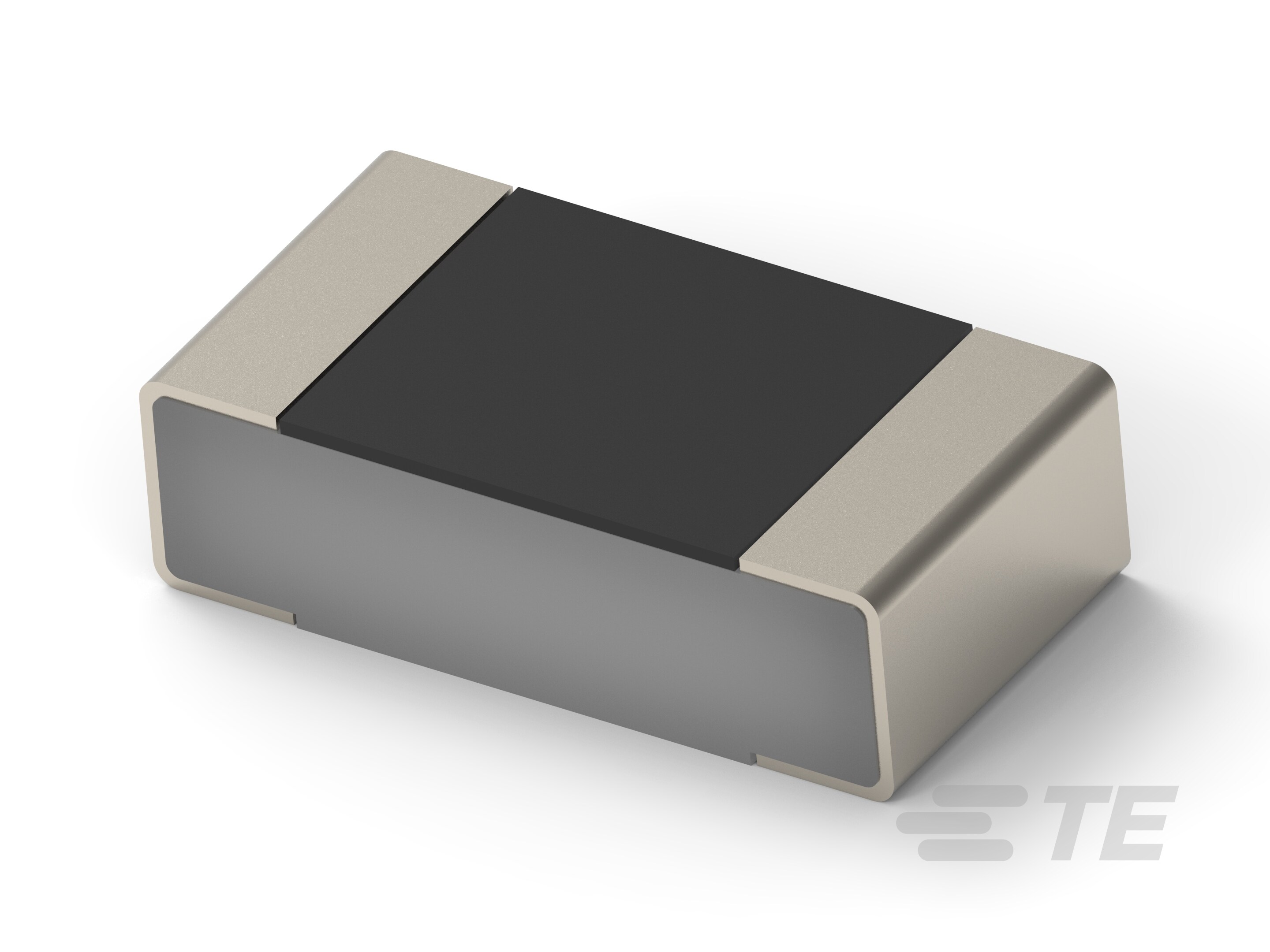

RES SMD 53.6 OHM 0.1% 1/10W 0603

Part	Tolerance	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Power (Watts) Options	Package Name	Composition	Temperature Coefficient	Resistance	Height - Seated (Max)	Number of Terminations	Size / Dimension Width	Size / Dimension Length
TE Connectivity AMP Connectors RP73D1J53R6BTG	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	53.6 Ohm	0.022 in	2	0.031 in	0.061 in
TE Connectivity AMP Connectors RP73D1J255KBTG	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	255 kOhm	0.022 in	2	0.031 in	0.061 in
TE Connectivity AMP Connectors RP73D1J9K76BTG	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	9.76 kOhm	0.022 in	2	0.031 in	0.061 in
TE Connectivity AMP Connectors RP73D1J43K2BTD
TE Connectivity AMP Connectors RP73D1J11KBTG	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	11 kOhm	0.022 in	2	0.031 in	0.061 in
TE Connectivity AMP Connectors RP73D1J32K4BTG	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	32.4 kOhm	0.022 in	2	0.031 in	0.061 in
TE Connectivity AMP Connectors RP73D1J43K2BTD	0.1 %	0603 (1608 Metric)	155 °C	-55 °C	100 mW	1/10W	0603	Thin Film	15 ppm/°C	43.2 kOhm	0.022 in	2	0.031 in	0.061 in
