895 Series
Manufacturer: LITTELFUSE
Beta
⌘K
FUSE - LP JCASE 58VDC 40A 500 PC/ BULK ROHS COMPLIANT: YES
| Part | DC Cold Resistance | Fuse Type | Package / Case | Mounting Type | Color | Voltage Rating - DC | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Current Rating | Breaking Capacity | Melting I²t | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

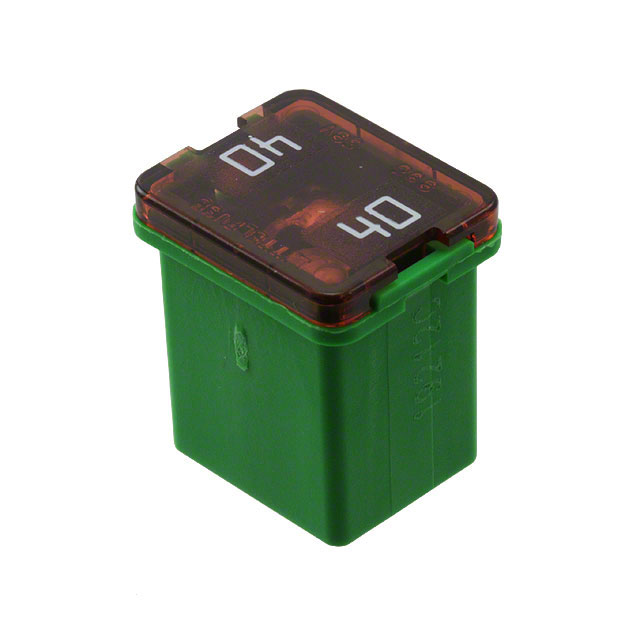

 LITTELFUSE | 0.00189 Ohms | Automotive | Auto Link | Requires Holder | Green | 58 VDC | 0.63 in | 0.472 in | 0.571 in | 40 A | 1 kA | 5470 | 125 °C | -40 °C |

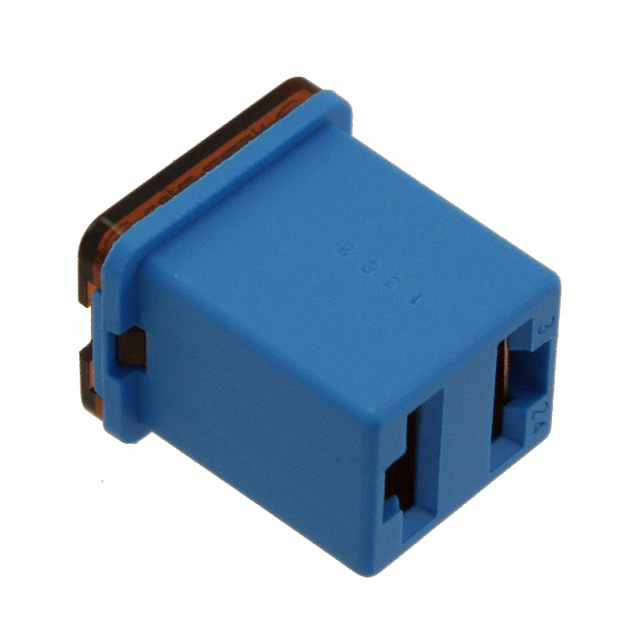

 LITTELFUSE | 0.00448 Ohms | Automotive | Auto Link | Requires Holder | Blue | 58 VDC | 0.63 in | 0.472 in | 0.571 in | 20 A | 1 kA | 400 | 125 °C | -40 °C |
