8337 Series

Catalog

CONN D-SUB RCPT 37P PNL MNT IDC

Part	Connector Style	Mounting Type	Current Rating	Shell Size	Connector Layout	Contact Finish Thickness	Termination	Connector Type	Material Flammability Rating	Flange Feature	Contact Finish	Contact Type	Number of Rows	Finish	Shell Material	Features	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Dielectric Material	Primary Material
3M Electronic Specialty 8337-8009	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (Unthreaded)	Gold	Signal	2	Tin Plated	Steel	Feed Through	37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester
3M Electronic Specialty 8337-7000	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (Unthreaded)	Gold	Signal	2	Tin Plated	Steel	Feed Through	37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Metal
3M Electronic Specialty 8337-7003	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (4-40)	Gold	Signal	2	Tin Plated	Steel		37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester
3M Electronic Specialty 8337-8003	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (4-40)	Gold	Signal	2	Tin Plated	Steel	Feed Through	37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Metal
3M Electronic Specialty 8337-8000	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (Unthreaded)	Gold	Signal	2	Tin Plated	Steel	Feed Through	37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Metal

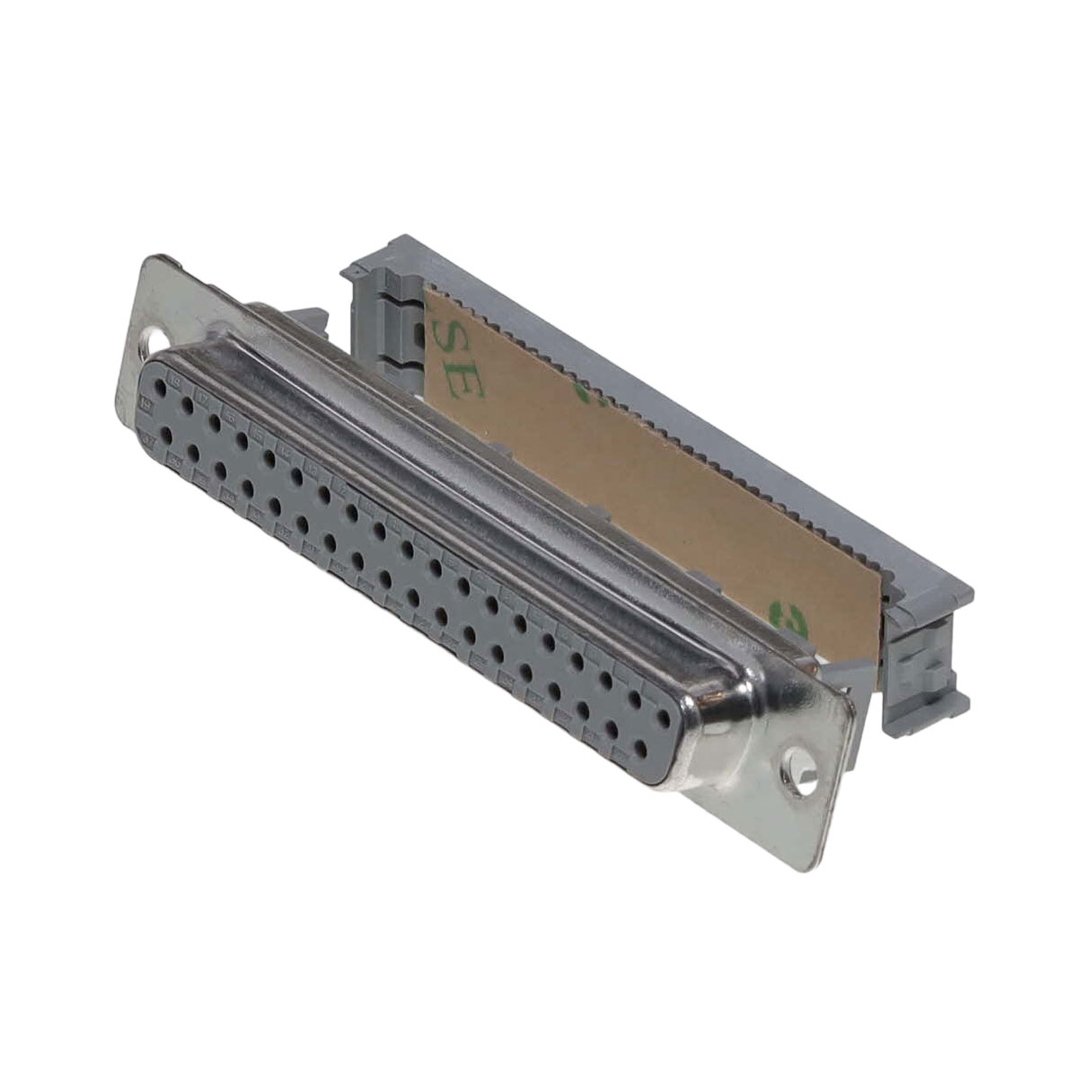

3M Electronic Specialty 8337-6009	D-Sub	Panel Mount	1 A	4	C DC	30 µin	IDC Ribbon Cable	Female Sockets Receptacle	UL94 V-0	Housing Shell (Unthreaded)	Gold	Signal	2	Tin Plated	Steel	Feed Through	37 pos	-55 °C	105 °C	Copper Alloy	Gray	26 AWG	28 AWG	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Metal
