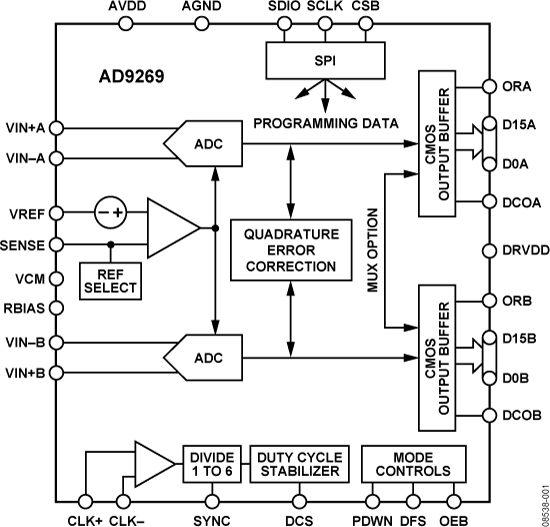

AD9269 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

16-BIT, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V DUAL ANALOG-TO-DIGITAL CONVERTER

Part	Mounting Type	Sampling Rate (Per Second)	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Architecture	Number of A/D Converters	Input Type	Number of Inputs	Number of Bits	Data Interface	Package / Case	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Ratio - ADC	Ratio - S/H	Configuration	Reference Type	Features	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Supplied Contents	Contents	Power (Typ)	Input Voltage (Value)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9269BCPZ-20	Surface Mount	20 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
Analog Devices Inc./Maxim Integrated AD9269-80EBZ		80 MHz							2 count			16 bits	SPI											Board(s)	Board	224.6 mW	2 Vpp	AD9269
Analog Devices Inc./Maxim Integrated AD9269BCPZ-65	Surface Mount	65 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
Analog Devices Inc./Maxim Integrated AD9269BCPZ-40	Surface Mount	40 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
Analog Devices Inc./Maxim Integrated AD9269BCPZRL7-20	Surface Mount	20 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
Analog Devices Inc./Maxim Integrated AD9269-65EBZ		65 MHz							2 count			16 bits	SPI											Board(s)	Board	191.2 mW	2 Vpp	AD9269
Analog Devices Inc./Maxim Integrated AD9269BCPZRL7-80	Surface Mount	80 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
Analog Devices Inc./Maxim Integrated AD9269BCPZRL7-40	Surface Mount	40 MHz	-40 °C	85 °C	9 mm	64-LFCSP-VQ	9 mm	Pipelined	2 count	Differential	2	16 bits	Parallel	64-VFQFN Exposed Pad CSP	1.9 V	1.7 V	1	1	S/H-ADC	External Internal	Simultaneous Sampling	3.6 V	1.7 V
