Q-0703T0 Series

Catalog

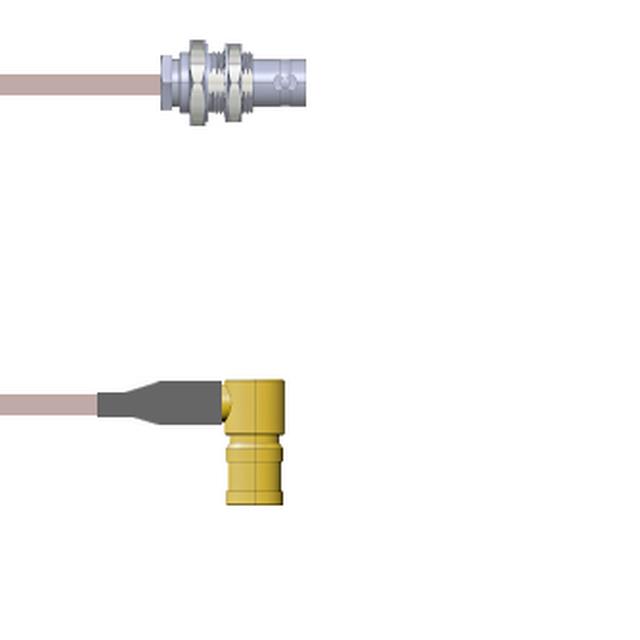

CBL ASSY BNC-SMB JACK-PLG 19.69"

Part	1st Connector	Length	2nd Connector Mounting Type	Color	2nd Connector	1st Connector Mounting Feature	1st Connector Mounting Type	Frequency - Max	2nd Contact Gender	1st Contact Gender	Features	Overall Impedance	Style	Cable Type Size	Cable Type	Length (ft)
McGill Microwave Systems Q-0703T000R0.5M	BNC Jack	19.69 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R018i	BNC Jack	18 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R084i	BNC Jack	84 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG	7 ft
McGill Microwave Systems Q-0703T000R1.5M	BNC Jack	59.1 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG	4.9 ft
McGill Microwave Systems Q-0703T000R001M	BNC Jack	39.4 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R060i	BNC Jack	1524 mm	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG	5 ft
McGill Microwave Systems Q-0703T000R003M	BNC Jack	118.1 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R036i	BNC Jack	36 in	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R006i	BNC Jack	0.5 ft	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
McGill Microwave Systems Q-0703T000R009i	BNC Jack	228.6 mm	Free Hanging (In-Line)	Copper	Right Angle SMB Plug	Bulkhead Front Side Nut	Panel Mount	2 GHz	Male	Female	Shielded	50 Ohms	BNC SMB	316	DB RG
