AD9286 Series

Catalog

8-BIT, 500 MSPS, 1.8 V ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Number of Inputs	Data Interface	Configuration	Architecture	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Input Type	Ratio - ADC	Ratio - S/H	Package Width	Package Name	Package Length	Number of Bits	Sampling Rate (Per Second)	Mounting Type	Package / Case	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Number of A/D Converters	Features	Reference Type	Supplied Contents	Contents	Input Voltage (Value)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9286BCPZRL7-500	2	LVDS - Parallel	S/H-ADC	Pipelined	1.7 V	1.9 V	Differential	1	1	7 mm	48-LFCSP-VQ	7 mm	8 bits	500 MHz	Surface Mount	48-VFQFN Exposed Pad CSP	1.9 V	1.7 V	-40 °C	85 °C	2 count	Simultaneous Sampling	Internal

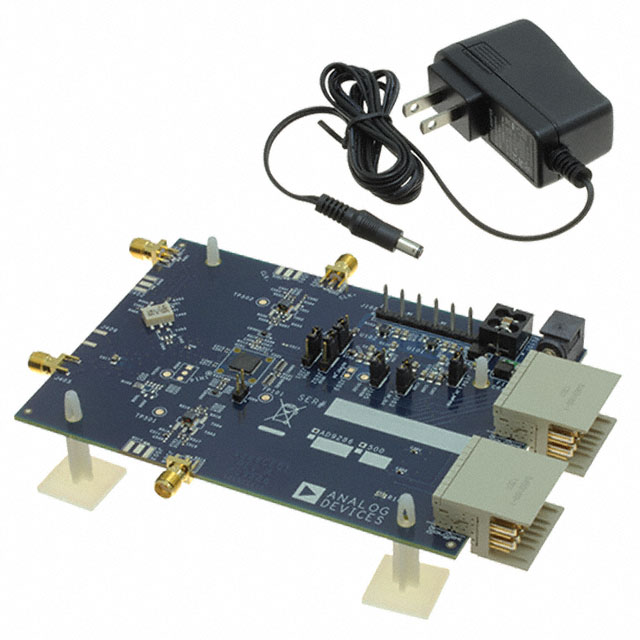

Analog Devices Inc./Maxim Integrated AD9286-500EBZ		SPI											8 bits	500 MHz							2 count			Board(s)	Board	1.2 Vpp	AD9286
Analog Devices Inc./Maxim Integrated AD9286BCPZ-500	2	LVDS - Parallel	S/H-ADC	Pipelined	1.7 V	1.9 V	Differential	1	1	7 mm	48-LFCSP-VQ	7 mm	8 bits	500 MHz	Surface Mount	48-VFQFN Exposed Pad CSP	1.9 V	1.7 V	-40 °C	85 °C	2 count	Simultaneous Sampling	Internal
