XPEBRY Series

Catalog

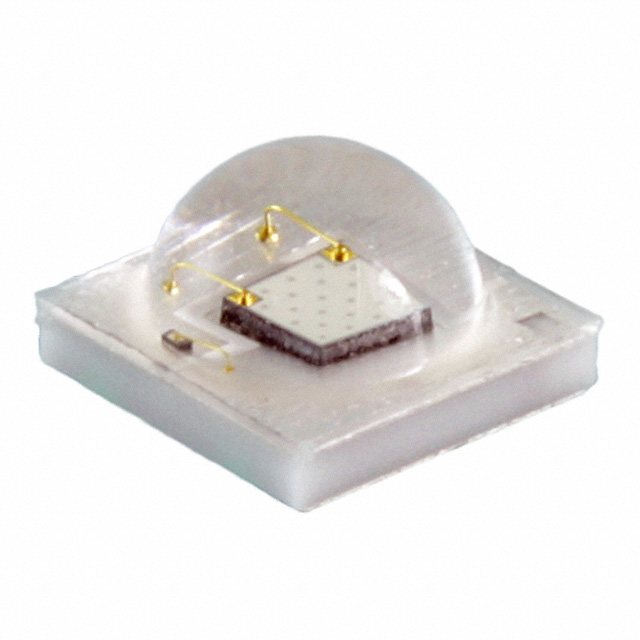

XLAMP XP-E LIGHT EMITTING DIODE ROYAL BLUE

Part	Current - Max	Color	Mounting Type	Temperature - Test	Luminous Flux	Luminous Flux (Minimum)	Luminous Flux (Maximum)	Wavelength	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case	Package Name	Viewing Angle	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Thermal Resistance of Package	Wavelength (Maximum)	Wavelength (Minimum)	Wavelength (Nominal)
CreeLED, Inc. XPEBRY-L1-0000-00T01	1.2 A	Blue	Surface Mount	25 °C	687.5 mW	675 mW	700 mW	458 nm	2.85 V	350 mA	1414 (3535 Metric)	1414	135 °	0.094 in	0.136 in	0.136 in
CreeLED, Inc. XPEBRY-L1-R250-00M03	1 A	Blue	Surface Mount	25 °C	538 mW	525 mW	550 mW	460 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	465 nm	455 nm	460 nm
CreeLED, Inc. XPEBRY-L1-0000-00Q02	1 A	Blue	Surface Mount	25 °C	613 mW	600 mW	625 mW	455 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	460 nm	450 nm	455 nm
CreeLED, Inc. XPEBRY-L1-0000-00T02	1.2 A	Blue	Surface Mount	25 °C	687.5 mW	675 mW	700 mW	455 nm	2.85 V	350 mA	1414 (3535 Metric)	1414	135 °	0.094 in	0.136 in	0.136 in
CreeLED, Inc. XPEBRY-L1-R250-00J01	1 A	Blue	Surface Mount	25 °C	463 mW	450 mW	475 mW	458 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	465 nm	450 nm	458 nm
CreeLED, Inc. XPEBRY-L1-R250-00N01	1 A	Blue	Surface Mount	25 °C	563 mW	550 mW	575 mW	458 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	465 nm	450 nm	458 nm
CreeLED, Inc. XPEBRY-L1-R250-00P03	1 A	Blue	Surface Mount	25 °C	588 mW	575 mW	600 mW	460 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	465 nm	455 nm	460 nm
CreeLED, Inc. XPEBRY-L1-0000-00P02	1 A	Blue	Surface Mount	25 °C	588 mW	575 mW	600 mW	455 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	460 nm	450 nm	455 nm
CreeLED, Inc. XPEBRY-L1-0000-00Q01	1 A	Blue	Surface Mount	25 °C	613 mW	600 mW	625 mW	458 nm	3.1 V	350 mA	1414 (3535 Metric)	SMD	135 °	0.094 in	0.136 in	0.136 in	9 °C/W	465 nm	450 nm	458 nm
CreeLED, Inc. XPEBRY-L1-0000-00U02	1.2 A	Blue	Surface Mount	25 °C	712.5 mW	700 mW	725 mW	455 nm	2.85 V	350 mA	1414 (3535 Metric)	1414	135 °	0.094 in	0.136 in	0.136 in
